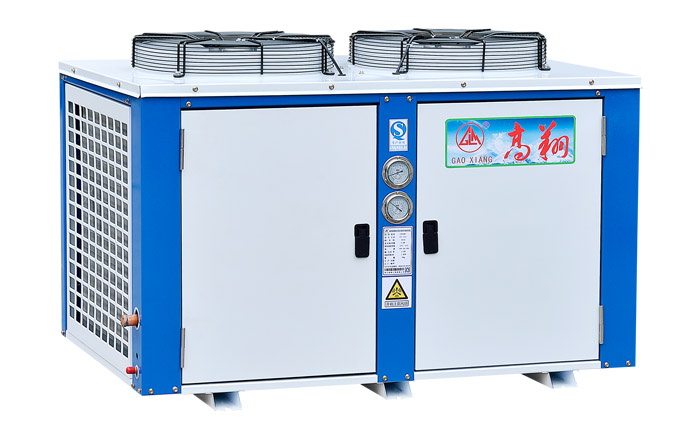

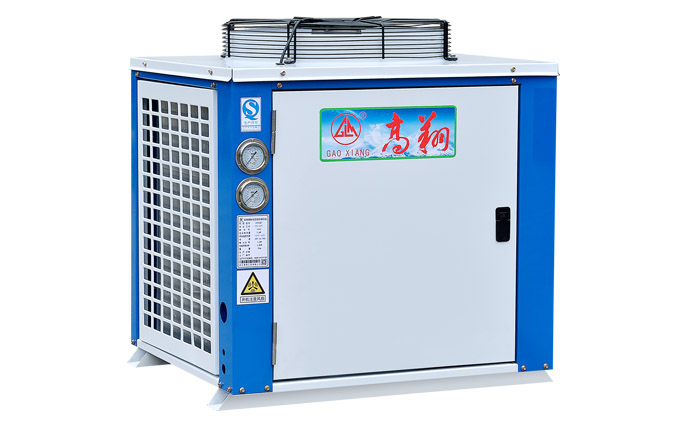

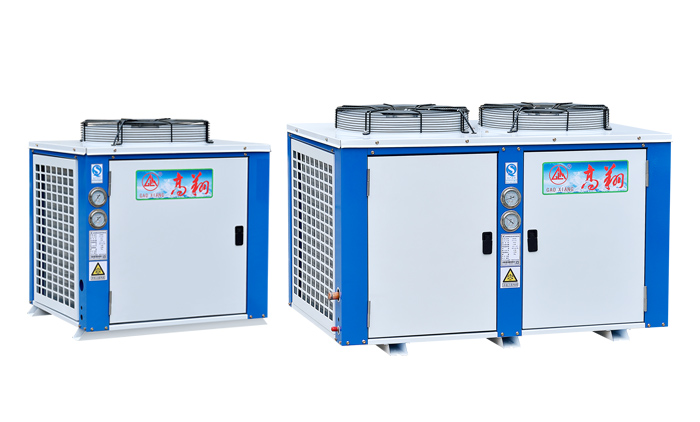

FNU Condenser

FNU Condenser

Air-cooled condenser is a kind of cooling equipment that is used in the cooling equipment of Foung. There are mainly four types of air-cooled condensers produced by our company: FNH type, FNV type, FNVB type, GP type, FNH type, side blowing type, FNV type, FNVB type, FNU type and GP type. . FNH type can be widely used in sound requirements of the refrigeration equipment used; FNV type, FNVB type, FNU type, GP type top hair style.

Details

Products Features

● High-quality steel shell, the surface spray, corrosion-resistant, beautiful appearance;
● The coil adopts the copper tube mis-arranging way, utilizes the mechanical expansion tube to make the copper tube and the fins closely combine, and the heat exchange effect is good;
● products after 2.5MPa tightness test and system sewage treatment;
● Applicable to R22, R134a, R404a, R407c and other refrigerants;
● High-performance heat exchange coil, clean and dry;
● Aluminum fin punching for the "L" line extension of the film, expanded tube close contact heat transfer efficiency;
● condenser design width is reasonable, the distance between the blades and aluminum fins are greater than 1/3 the diameter of the blades to ensure that there is enough windward area of operation;
● shell spray processing, corrosion-resistant durable;
● Special-purpose products, please contact the company's sales department .


Technical Parameters

型号规格

排热量

A»=15k(KW)

换热面积

Heat-exchange
area

风机 Fan

进气管

苴径

出气管

直径

外型尺寸

Dimensions

安装尺寸 Mounting dimensions

Model

Specifications

Heat removal quantity

数呈

Quantity

风叶

直径Diameter of fan blade

风圼

Air volume

功率

Power

电压

Voltage

Diameter of inlet tube

Diameter of outler tube

L

B

H

D

E



W

m2

N

mm

m3/h

W

V

mm

mm

mm

mm

mm

mm

mm

FNU-10/28

9968

28

1

4D450

5000

290

380

19

14

870

670

690

510

840

FNU-12/33

11880

33

1

4D450

5000

290

380

19

14

870

670

690

510

840

FNU-15/42

15036

42

1

4D450

6570

380

380

19

16

920

770

690

610

890

FNU-18/50

17950

50

1

4D500

8720

600

380

22

16

900

770

900

610

870

FNU-21/60

21360

60

1

4D550

8720

600

380

22

16

900

770

900

610

870

FNU-25/70

24640

70

1

4D550

8720

600

380

22

16

900

770

1000

610

840

FNU-28/80

28240

80

2

4D450

2x5000

2x290

380

22

16

1330

850

800

900

820

FNU-31/90

30500

90

2

4D500

2x6570

2x380

380

22

16

1330

950

890

900

920

FNU-35/100

35400

100

2

4D500

2x6570

2x380

380

22

16

1330

950

990

900

920

FNU-39/110

39060

110

1

4D500

2x6570

2x380

380

22

16

1480

950

990

900

920

FNU-42/120

42240

120

1

4D550

3x8720

2x600

380

25

19

1730

1050

1000

1300

1020

FNU-46/130

46028

130

1

4D550

3x8720

2x600

380

25

19

1730

1050

1000

1300

1020
