Standard Air Cooler

D series air blower is a kind of cooling and cooling equipment which is used in the freon refrigeration unit. It is divided into DL, DD and DJ according to applicable temperature. It can be applied to different room temperature and DL type cold air The machine is mainly suitable for fresh storage around 0 ℃; DD-type air cooler is mainly applied to -18 ℃ cold storage, DJ-type air cooler is mainly applied to -25 ℃ below the freezing library.

Details

Products features

● Designed for fresh, frozen, cold storage and design;

● High-quality steel shell, the surface spray, corrosion-resistant, beautiful appearance;

● coil using the wrong way, the use of mechanical expansion, so that copper and aluminum closely integrated, heat transfer effect is good;

● High-quality stainless steel electric heating pipe evenly distributed in the coil. Defrost effect is good; electric heat pipe defrost with electric aluminum tube and fin hole close, easy to heat, long life;

● The design of the chiller is reasonable in width, and the distance between the blades and the aluminum fins is greater than 1/3. The diameter of the blades ensures that there is enough effective air volume;

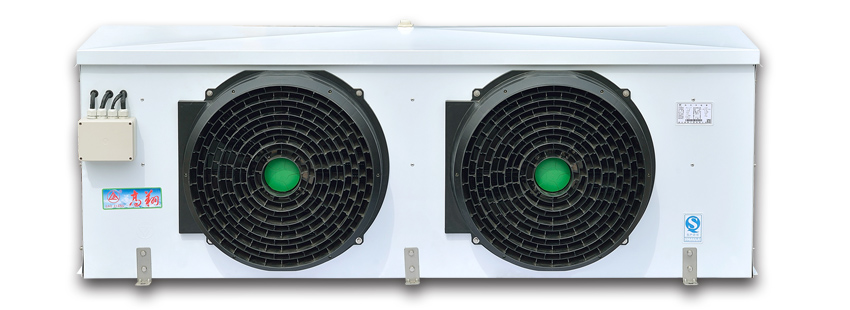

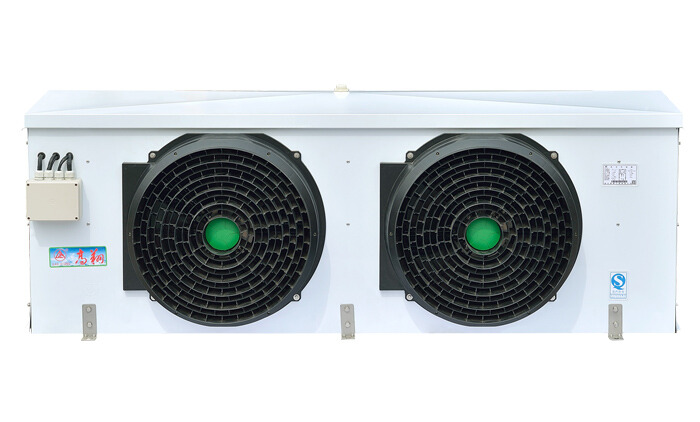

● According to customer requirements using long-distance air supply hairdryer;

● Special-purpose products, please contact the salesman Gao Xiang.

Technical Parameters

高温标准型吊顶式冷风机技术参数
型号	产冷量	名义面积	储液量	冷媒进/出管	风机参数						电热融霜
	库温0℃ △t=10℃	名义面积	储液量	冷媒进/出管	风量	数量	风扇直径	电压	功率	射程	翅片融霜功率	接水盘功率
	W	㎡	㎏	㎜	m3/h	N	㎜	V	W	m	W	W
高温片距：4.5㎜
DL-2/10	2000	10	0.5	Φ12/ф14	1170	1	300	380/220	75	8	500	500
DL-3/15	3000	15	1.1	Φ12/ф14	2340	2	300	380/220	2×75	8	900	900
DL-4.3/20	4260	20	1.1	Φ12/ф16	2340	2	300	380/220	2×75	8	900	900
DL-5.3/25	5325	25	1.6	Φ12/ф16	3510	3	300	380/220	3×75	8	1200	1200
DL-8.4/40	8400	40	2.5	Φ16/ф25	6800	2	400	380/220	2×180	10	1300	1300
DL-12/55	11550	55	3.3	Φ16/ф25	6800	2	400	380/220	2×180	10	1500	1500
DL-17/80	16800	80	5	Φ19/ф28	12000	2	500	380	2×550	15	2400	1200
DL-23/105	23200	105	6.6	Φ19/ф32	12000	2	500	380	2×550	15	3600	1200
DL-28/125	27600	125	8.6	Φ19/ф35	18000	3	500	380	3×550	15	4800	1600
DL-35/160	34640	160	9.8	Φ19/ф38	18000	3	500	380	3×550	15	5100	1700
DL-40/185	40320	185	11.3	Φ25/ф42	24000	4	500	380	4×550	15	6000	2000
DL-46/210	46080	210	12.9	Φ25/ф42	24000	4	500	380	4×550	15	6600	2200
DL-52/260	52000	260	17.8	Φ25/ф50	24000	4	500	380	4×550	15	8800	2200
DL-66/330	66000	330	21	Φ25/ф50	32000	4	550	380	4×550	15	11000	2200
DL-82/410	82000	410	21.9	Φ25/ф50	40000	4	600	380	4×1100	20	11000	2200
DL-94/470	94000	470	34.9	Φ25/ф54	42000	3	700	380	3×2500	20	19200	2400
DL-116/580	116000	580	43.5	Φ28/ф54	42000	3	700	380	3×2500	20	20800	2600

中温标准型吊顶式冷风机技术参数
型号	产冷量	名义面积	储液量	冷媒进/出管	风机参数						电热融霜
	库温-18℃ △t=10℃				风量	数量	风扇直径	电压	功率	射程	翅片融霜功率	接水盘功率
	库温-18℃ △t=10℃				风量	数量	风扇直径	电压	功率	射程	翅片融霜功率	接水盘功率
	W	㎡	kg	㎜	m³/h	N	mm	V	W	m	W	W
中温片距：6mm
DD-1.4/7	1425	7	0.5	Φ12/ф14	1170	1	300	380/220	75	8	1000	500
DD-2.2/12	2220	12	0.9	Φ12/ф14	2340	2	300	380/220	2×75	8	1800	900
DD-3.0/15	2960	15	0.9	Φ12/ф16	2340	2	300	380/220	2×75	8	1800	900
DD-4.1/22	4070	22	1.4	Φ12/ф16	3510	3	300	380/220	3×75	8	2400	1200
DD-5.6/30	5920	30	2.2	Φ16/ф25	6800	2	400	380/220	2×180	10	2600	1300
DD-8.0/40	7955	40	2.9	Φ16/ф25	6800	2	400	380/220	2×180	10	3000	1500
DD-11/60	11100	60	4.3	Φ19/ф28	12000	2	500	380	2×550	15	3600	1200
DD-16/80	16280	80	5.7	Φ19/ф32	12000	2	500	380	2×550	15	6000	1200
DD-19/100	19425	100	7.4	Φ19/ф35	18000	3	500	380	3×550	15	8000	1600
DD-24/120	24420	120	8.4	Φ19/ф38	18000	3	500	380	3×550	15	8500	1700
DD-29/140	28490	140	9.7	Φ25/ф42	24000	4	500	380	4×550	15	10000	2000
DD-33/160	32560	160	11.1	Φ25/ф42	24000	4	500	380	4×550	15	11000	2200
DD-37/200	37000	200	15.2	Φ25/ф50	24000	4	500	380	4×550	15	11000	2200
DD-46/250	46250	250	18	Φ25/ф50	32000	4	550	380	4×550	15	17600	2200
DD-57/310	57350	310	18.8	Φ25/ф50	40000	4	600	380	4×1100	20	17600	2200
DD-67/360	66600	360	29.4	Φ25/ф54	42000	3	700	380	3×2500	20	26400	2400
DD-81/440	81400	440	37.2	Φ28/ф54	42000	3	700	380	3×2500	20	28600	2600

低温标准型吊顶式冷风机技术参数
型号	产冷量	名义面积	储液量	冷媒进/出管	风机参数						电热融霜
	库温-25℃ △t=10℃	名义面积	储液量	冷媒进/出管	风量	数量	风扇直径	电压	功率	射程	翅片融霜功率	接水盘功率
	W	㎡	kg	㎜	m³/h	N	mm	V	W	m	W	W
低温片距：9.0mm
DJ-1.3/8	1320	8	0.8	Φ12/ф14	2340	2	300	380/220	2×75	8	900	900
DJ-1.9/12	1920	12	0.8	Φ12/ф16	2340	2	300	380/220	2×75	8	1800	900
DJ-2.5/15	2475	15	1.2	Φ12/ф16	3510	3	300	380/220	3×75	8	2400	1200
DJ-3.6/20	3630	20	2	Φ16/ф25	6800	2	400	380/220	2×180	10	2600	1300
DJ-5.0/30	4950	30	2.6	Φ16/ф25	6800	2	400	380/220	2×250	10	3000	1500
DJ-7.3/40	7260	40	3.9	Φ19/ф28	12000	2	500	380	2×550	15	3600	1200
DJ-10/55	10065	55	5.2	Φ19/ф32	12000	2	500	380	2×550	15	6000	1200
DJ-12/70	11880	70	6.7	Φ19/ф35	18000	3	500	380	3×550	15	8000	1600
DJ-15/85	15015	85	7.7	Φ19/ф38	18000	3	500	380	3×550	15	8500	1700
DJ-17/100	17490	100	8.9	Φ25/ф42	24000	4	500	380	4×550	15	10000	2000
DJ-20/115	19965	115	10.1	Φ25/ф42	24000	4	500	380	4×550	15	11000	2200
DJ-23/140	23100	140	13.9	Φ25/ф50	24000	4	500	380	4×550	15	11000	2200
DJ-28/170	28050	170	16.4	Φ25/ф50	32000	4	550	380	4×550	15	17600	2200
DJ-35/210	34650	210	17.2	Φ25/ф50	40000	4	600	380	4×1100	20	17600	2200
DJ-41/250	41250	250	26.9	Φ25/ф54	42000	3	700	380	3×2500	20	26400	2400
DJ-50/300	49500	300	34.1	Φ28/ф54	42000	3	700	380	3×2500	20	28600	2600

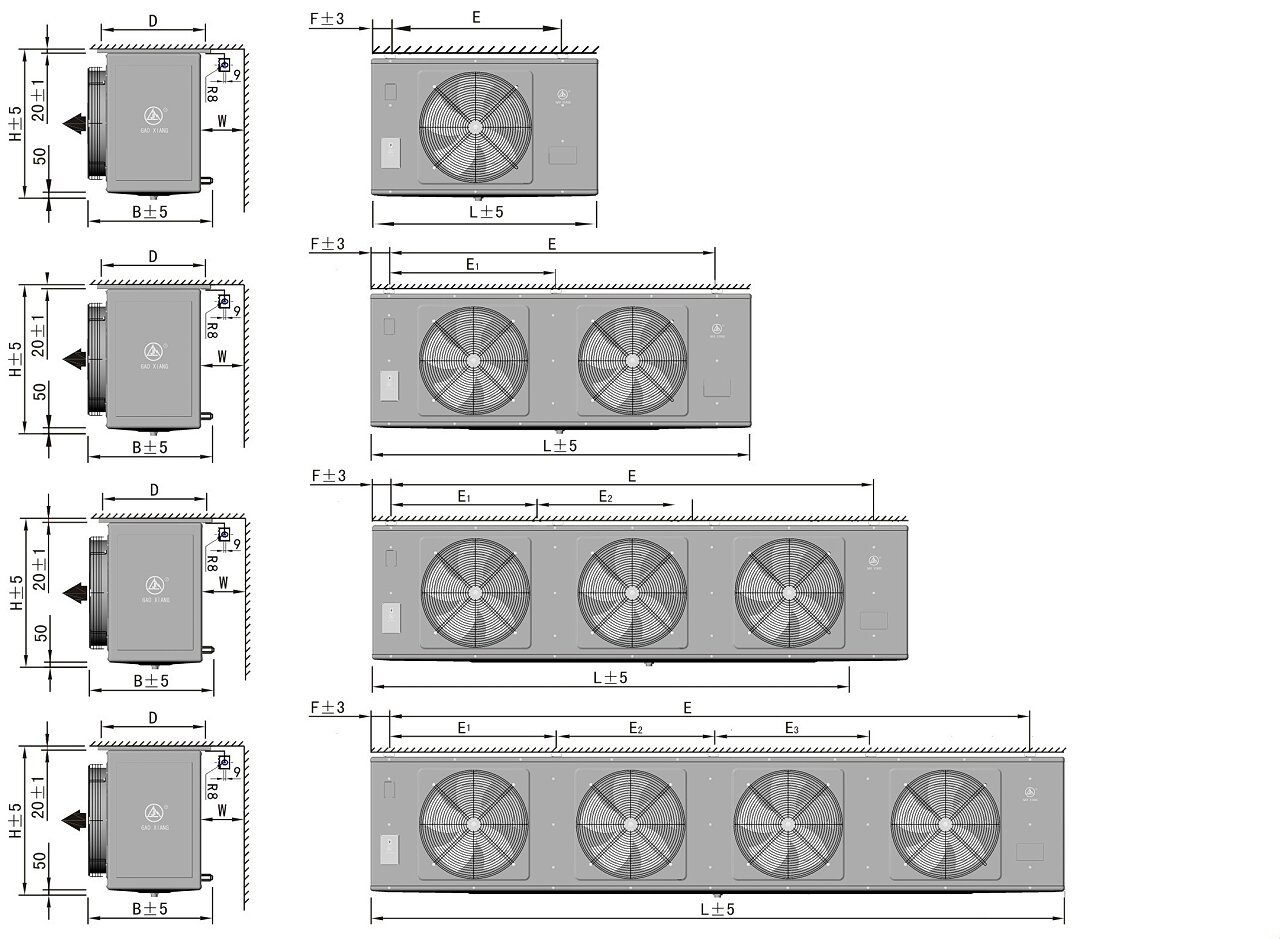

标准型冷风机尺寸参数
型号	长	宽	高	吊顶安装孔位置尺寸						排水接管外径	间距
	L	B	H	D	E	E1	E2	E3	F		W
DL-2/10	730	420	475	340	510				105	G1”	300
DD-1.2/7
DL-3/15	1280	420	475	340	1060				105	G1”	300
DD-2.1/12
DJ-1.2/8
DL-4.3/20	1280	420	475	340	1060				105	G1”	300
DD-2.6/15
DJ-1.9/12
DL-5.3/25	1580	420	475	340	1360				105	G1”	300
DD-3.9/22
DJ-2.3/15
DL-8.4/40	1380	490	600	380	1110				95	G1”	350
DD-5.3/30
DJ-3.1/20
DL-12/55	1750	490	600	380	1480				95	G1”	350
DD-8.0/40
DJ-4.7/30
DL-17/80	1920	580	680	510	1650	840			95	G1”	400
DD-11/60
DJ-6.2/40
DL-23/105	1920	580	680	510	1650	840			95	G1”	450
DD-14/80
DJ-8.5/55
DL-28/125	2420	580	680	510	2150	740	700		95	G1”	450
DL-18/100
DL-11/70
DL-35/160	2720	580	680	510	2450	840	800		95	G1”	500
DD-21/120
DJ-13/85
DL-40/185	3120	580	680	510	2850	740	700	700	95	G1”	500
DD-25/140
DJ-16/100
DL-46/210	3520	580	680	510	3250	840	800	800	95	G1.5”	500
DD-28/160
DJ-18/115
DL-52/260	3520	680	680	580	3250	840	800	800	95	G1.5”	500
DD-35/200
DJ-22/140
DL-66/330	3520	680	740	580	3250	840	800	800	95	G1.5”	610
DD-44/250
DJ-26/170
DL-82/410	3520	940	910	630	3250	840	800	800	95	G1.5”	610
DD-54/310
DJ-33/210
DL-94/470	3020	1040	960	720	2750	940	900		95	G1.5”	630
DD-63/360
DJ-39/250
DL-116/580	3320	1040	1010	720	3050	1040	1000		95	G2.0”	630
DD-77/440
DJ-47/300
