FNV  Condenser

FNV Condenser

Air-cooled condenser is a kind of cooling equipment that is used in the cooling equipment of Foung. There are mainly four types of air-cooled condensers produced by our company: FNH type, FNV type, FNVB type, GP type, FNH type, side blowing type, FNV type, FNVB type, FNU type and GP type. .

Details

Products Features

● High-quality steel shell, the surface spray, corrosion-resistant, beautiful appearance;
● The coil adopts the copper tube mis-arranging way, utilizes the mechanical expansion tube to make the copper tube and the fins closely combine, and the heat exchange effect is good;
● products after 2.5MPa tightness test and system sewage treatment;
● Applicable to R22, R134a, R404a, R407c and other refrigerants;

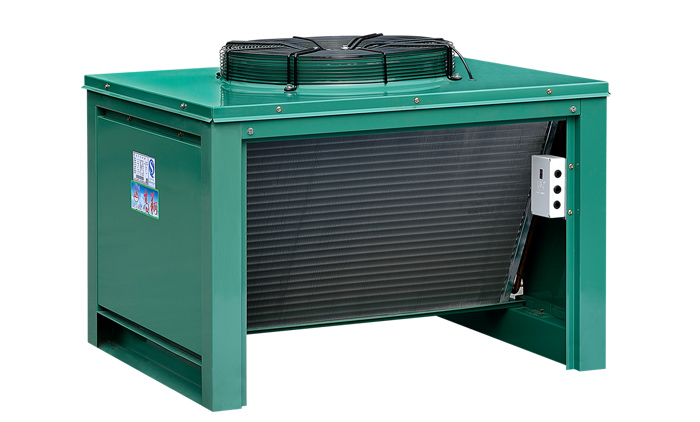

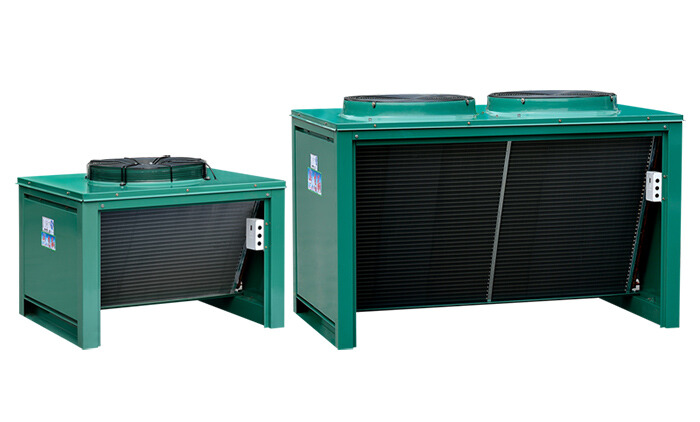

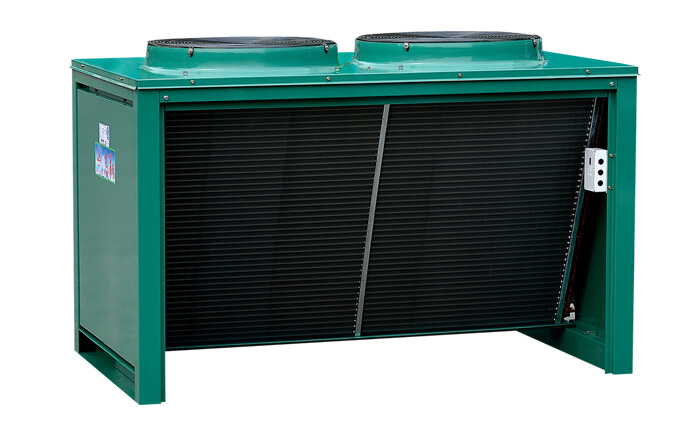

● FNV-type condenser with large windward side, good heat transfer, are equipped with low-noise motor;
● High-performance heat exchange coil, clean and dry;
Adopt FZL series axial flow fan, air volume, low noise, low power consumption;
● shell with high-quality galvanized sheet, spray treatment, corrosion-resistant durable;
● Special-purpose products, please contact the company's sales department.



Technical Parameters

型号
名义排热量
换热面积

进气管直径
出气管直径

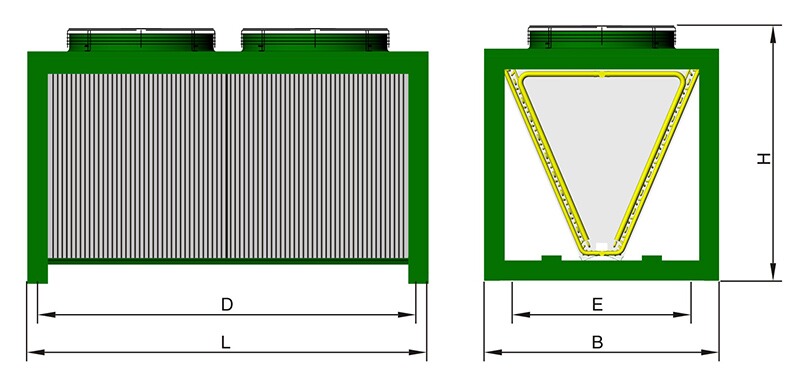

外形尺寸
安装尺寸
数量
风叶直径
风量
功率
电压
W
m2
N
φmm
m3/h
W
V
φmm
φmm
L
B
H
D
E
FNV25/72
24840
72
1
4D550
8487
600
380
22
16
950
900
880
870
650
FNV30/87
30102
87
1
4D600
10820
780
380
25
16
1100
1000
880
1020
650
FNV39/110
39050
110
2
4D500
2×6246
2×450
380
25
16
1400
900
880
1320
650
FNV45/130
44850
130
2
4D550
2×8487
2×600
380
28
19
1550
900
880
1470
650
FNV55/155
55025
155
2
4D500
2×8487
2×600
380
28
19
1600
1000
980
1520
750
FNV64/185
63825
185
2
4D600
2×12500
2×780
380
28
22
1700
1000
1080
1620
750
FNV73/210
72660
210
2
4D630
2×13000
2×800
380
32
22
1750
1000
1180
1670
750
FNV83/240
82800
240
2
φ700
2×15000
2×750
380
32
22
1900
1175
1260
1820
925
FNV104/300
103800
300
2
φ750
2×19000
2×1100
380
35
25
2250
1175
1260
2170
925
FNV111/320
111040
320
2
φ750
2×19000
2×1100
380
38
25
2350
1175
1260
2270
925
FNV125/360
124560
360
3
φ650
3×13200
3×550
380
42
28
2650
1175
1260
2570
925
FNV138/400
138400
400
3
φ700
3×15000
3×750
380
42
28
2950
1175
1260
2870
925
FNV166/480
165600
480
3
φ750
3×19000
3×1100
380
54
28
3400
1175
1260
3320
925

Note: Below 210 square meters with quadrupole outer rotor fan, 240 square meters above using six pole axial fan.

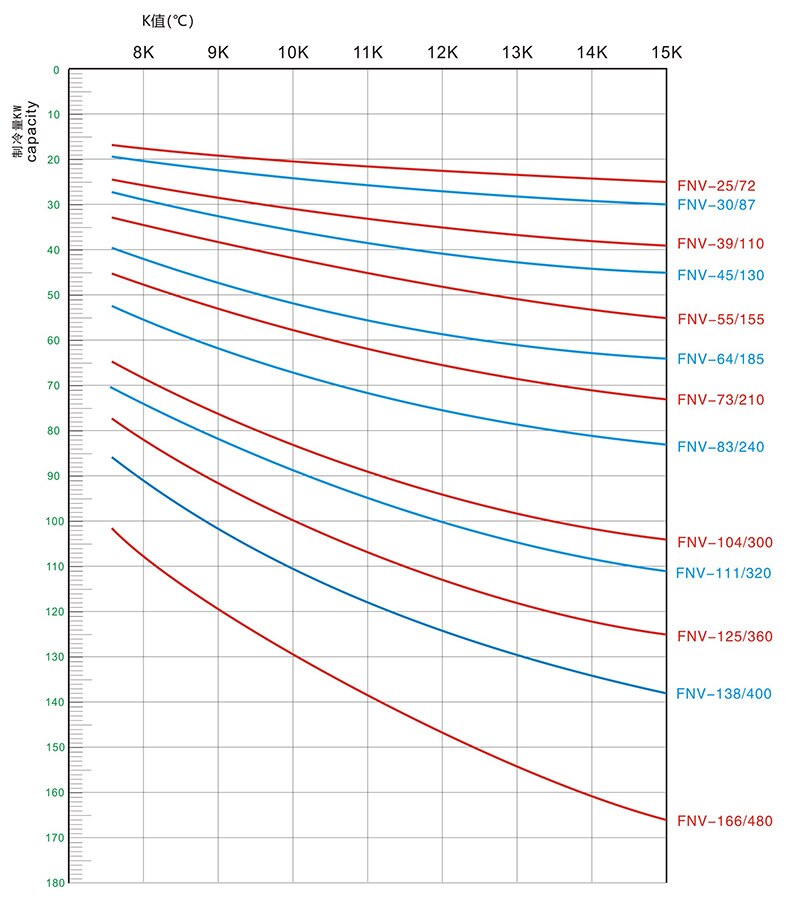

FNV Type Selection
