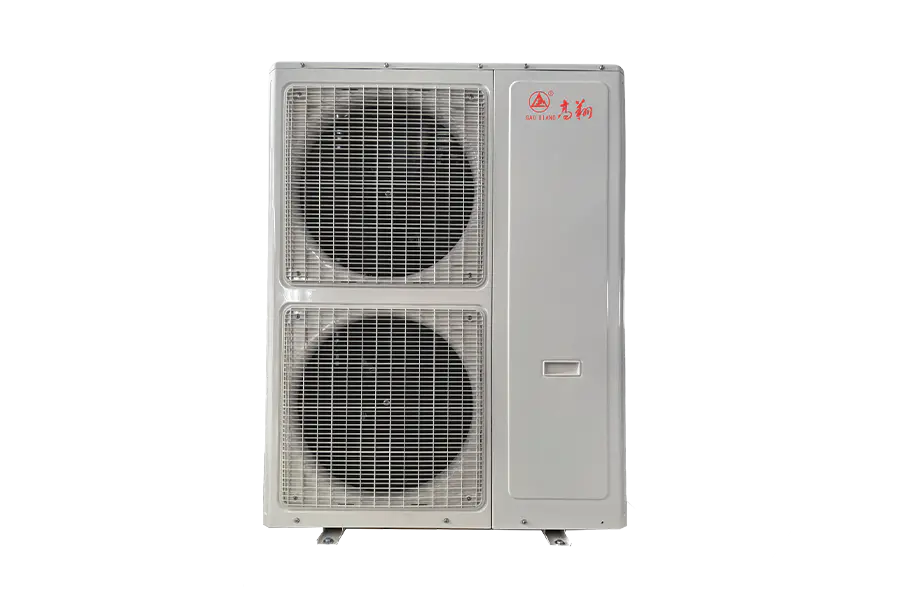

Fully Enclosed Outdoor Unit

We use refrigeration compressors from international brands, which offer consistent quality, high reliability, low noise levels, and high efficiency.
We utilize copper-tube-and-aluminum-fin condensers, which provide high heat exchange efficiency and a long service life.

Share to:

Product Features

Model of units GXW2CQFZG GXW2.5CQFZG GXW3CQFZG GXW3.5CQFZG GXW4CQFZG GXW5CQFZG GXW6CQFZG
Applicable Temperature(℃) +10~-15℃
Refrigerant R22
Power supply 220V/380V 50Hz 380V 50Hz
Condenser Quantity of Fan(piece) 1 1 1 1 2 2 2
Air volume(m³/h) 1×3200 1×3200 1×3200 1×3200 2×3200 2×3200 2×3200
Power of Fan(W) 1×60 1×60 1×60 1×60 2×60 2×60 2×60
Refrigerating capacity of compressor units Evaporating Temperature +5℃ Cooling capacity(W) 5190 6000 7110 8410 11000 12510 15210
Powar(W) 1820 2110 2590 2950 3300 4260 5080
Evaporating Temperature -5℃ Cooling capacity(W) 4050 4190 5840 5760 7300 9270 11600
Power(W) 1860 1920 2530 2640 2980 3780 4680
Evaporating Temperature -12℃ Cooling capanity(W) 2930 3230 4050 4520 5450 6880 8790
Power(W) 1890 2070 2530 2690 2790 3400 4230
Coupling Tube coupling 3/8" 3/8" 3/8" 3/8" 1/2" 1/2" 1/2"
Suction coupling 5/8" 5/8" 5/8" 5/8" 3/4" 3/4" 3/4"
Overall dimensions  Length(L) mm 1010 1010 1010 1010 1010 1010 1010
Width(B) mm 410 410 410 410 410 410 410
Height(H) mm 855 855 855 855 1245 1245 1245
Mounting dimensions Length(D) mm 580 580 580 580 580 580 580
Width(E) mm  380 380 380 380 380 380 380
Standard configuration of units: compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve and wiring box, etc.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.

Model of units GXW2CQFZG GXW2.5CQFZG GXW3CQFZG GXW3.5CQFZG GXW4CQFZG GXW5CQFZG GXW6CQFZG
Applicable Temperature(℃) +10~-15℃
Refrigerant R404A
Power supply 220V/380V 50Hz 380V 50Hz
Condenser Quantity of Fan(piece) 1 1 1 2 2 2
Air volume(m³/h) 1×3200 1×3200 1×3200 1×3200 2×3200 2×3200 2×3200
Power of Fan(W) 1×60 1×60 1×60 1×60 2×60 2×60 2×60
Refrigerating capacity of compressor units Evaporating Temperature +5℃ Cooling capacity(W) 5270 5960 7910 8900 10450 12250 13400
Powar(W) 1920 2090 3020 3120 4100 5440 6130
Evaporating Temperature -5℃ Cooling capacity(W) 3750 4190 5100 6270 7000 8850 10100
Power(W) 1990 1920 3100 3200 3900 4700 5820
Evaporating Temperature -12℃ Cooling capanity(W) 2920 3230 4100 4830 5600 7200 8060
Power(W) 1910 2070 2980 3220 3700 4480 5370
Coupling Tube coupling 3/8" 3/8" 3/8" 3/8" 1/2" 1/2" 1/2"
Suction coupling 5/8" 5/8" 5/8" 5/8" 3/4" 3/4" 3/4"
Overall dimensions  Length(L) mm 1010 1010 1010 1010 1010 1010 1010
Width(B) mm 410 410 410 410 410 410 410
Height(H) mm 855 855 855 855 1245 1245 1245
Mounting dimensions Length(D) mm 580 580 580 580 580 580 580
Width(E) mm  380 380 380 380 380 380 380
Standard configuration of units: compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve and wiring box, etc.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.
