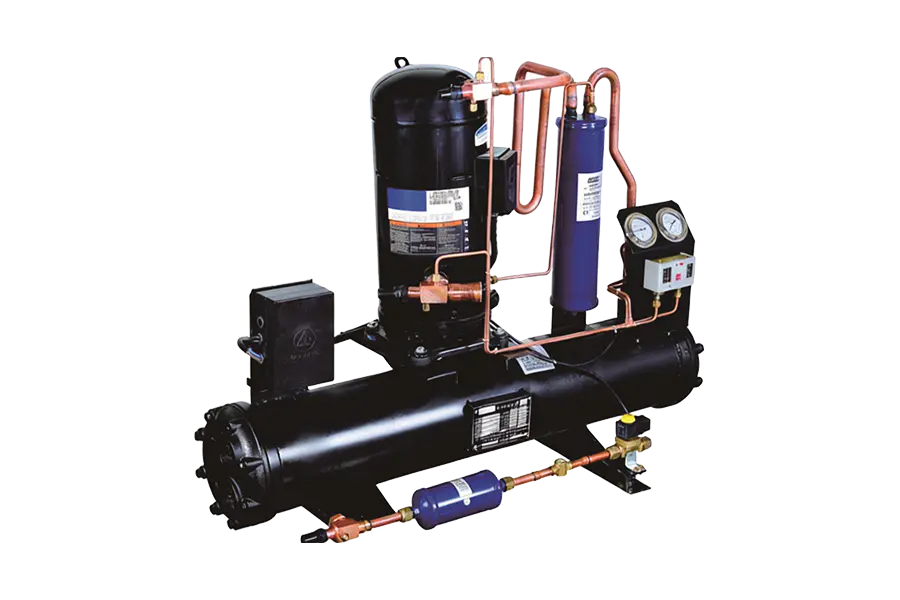

Fully Enclosed Water-Cooled Unit

We use refrigeration compressors from international brands, which offer consistent quality, high reliability, low noise levels, and high efficiency.
We utilize high-efficiency shell-and-tube water-cooled condensers, which provide excellent heat exchange efficiency and a long service life.

Share to:

Product Features

Model of units GXN5CQZG GXN6CQZG GXN8CQZG GXN9CQZG GXN10CQZG GXN12CQZG
Applicable Temperature(℃) +10~-15℃
Refrigerant R22
Power supply 380V 50Hz
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 3.1 3.7 4.9 5.5 6.3 7.2
Connection Size 1 1/2 1 1/2 1 1/2 2 1/2 1 1/2 1 1/4
Refrigerating capacity of compressor units Evaporating Temperature +10℃ Cooling capacity(W) 16100 19412 25760 28888 33856 38640
Powar(W) 3744 4514 5990 6718 7873 8986
Evaporating Temperature +5℃ Cooling capacity(W) 12750 15900 21800 25100 31200 35000
Powar(W) 3290 3810 4960 5550 6530 7410
Evaporating Temperature -5℃ Cooling capacity(W) 9290 11850 15750 18300 22500 24900
Power(W) 3150 3760 4880 5410 6360 7220
Evaporating Temperature -12℃ Cooling capanity(W) 7110 9320 12000 14250 17400 18700
Power(W) 3100 3710 4880 5340 6270 7100
Coupling Tube coupling 1/2" 1/2" 1/2" 5/8" 5/8" 5/8"
Suction coupling 7/8" 7/8" 1-1/8" 1-1/8" 1-1/18" 1-3/8"
Overall dimensions  Length(L) mm 972 972 972 1162 1162 1162
Width(B) mm 350 450 450 450 450 450
Height(H) mm 726 726 746 875 875 875
Mounting dimensions Length(D) mm 500 500 500 600 600 600
Width(E) mm  300 380 380 380 380 380
Standard configuration of units: compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve wiring box, etc.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.

Model of units GXN5CQZG GXN6CQZG GXN8CQZG GXN9CQZG GXN10CQZG GXN13CQZG
Applicable Temperature(℃) -5~-20℃
Refrigerant R404A
Power supply 380V 50Hz
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 2.8 3.3 4.9 5.5 6.3 7.5
Connection Size 1 1/2 1 1/2 1 1/2 2     1 1/2 1 1/2
Refrigerating capacity of compressor units Evaporating Temperature -5℃ Cooling capacity(W) 9120 11100 15600 18750 21400 24400
Powar(W) 3760 4280 5670 6390 7390 9470
Evaporating Temperature -10℃ Cooling capacity(W) 7830 9530 13250 16150 18150 20900
Power(W) 3760 4300 5650 6360 7330 9380
Evaporating Temperature -20℃ Cooling capanity(W) 5570 6740 9030 11500 12600 14450
Power(W) 3760 4310 5620 6290 7180 9350
Coupling Tube coupling 1/2" 1/2" 1/2" 5/8" 5/8" 5/8"
Suction coupling 7/8" 7/8" 7/8" 1-1/8" 1-1/8" 1-3/8"
Overall dimensions  Length(L) mm 972 972 972 1162 1162 1162
Width(B) mm 350 450 450 450 450 450
Height(H) mm 726 726 726 875 875 875
Mounting dimensions Length(D) mm 500 500 500 600 600 600
Width(E) mm  300 380 380 380 380 380
Standard configuration of units: compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve wiring box, etc.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.

Model of units GXN5CQZG GXN6CQZG GXN8CQZG GXN9CQZG GXN10CQZG GXN13CQZG
Applicable Temperature(℃) -5~-20℃
Refrigerant R404A
Power supply 380V 50Hz
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 2.8 3.3 4.9 5.5 6.3 7.5
Connection Size 1 1/2 1 1/2 1 1/2 2     1 1/2 1 1/2
Refrigerating capacity of compressor units Evaporating Temperature -5℃ Cooling capacity(W) 9120 11100 15600 18750 21400 24400
Powar(W) 3760 4280 5670 6390 7390 9470
Evaporating Temperature -10℃ Cooling capacity(W) 7830 9530 13250 16150 18150 20900
Power(W) 3760 4300 5650 6360 7330 9380
Evaporating Temperature -20℃ Cooling capanity(W) 5570 6740 9030 11500 12600 14450
Power(W) 3760 4310 5620 6290 7180 9350
Coupling Tube coupling 1/2" 1/2" 1/2" 5/8" 5/8" 5/8"
Suction coupling 7/8" 7/8" 7/8" 1-1/8" 1-1/8" 1-3/8"
Overall dimensions  Length(L) mm 972 972 972 1162 1162 1162
Width(B) mm 350 450 450 450 450 450
Height(H) mm 726 726 726 875 875 875
Mounting dimensions Length(D) mm 500 500 500 600 600 600
Width(E) mm  300 380 380 380 380 380
Standard configuration of units: compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve wiring box, etc.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.

Model of units GXN15CQZG GXN20CQZG GXN22CQZG GXN25CQZG GXN30CQZG
Applicable Temperature(℃) -5~-20℃
Refrigerant R404A
Power supply 380V 50Hz
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 9.1 12 13 14 17
Connection Size 1 1/2 2 2 2 2
Refrigerating capacity of compressor units Evaporating Temperature -5℃ Cooling capacity(W) 32200 33282 40302 50454 62289
Powar(W) 11400 12559 15208 19039 23505
Evaporating Temperature -10℃ Cooling capacity(W) 27600 28364 34399 43065 53158
Power(W) 11300 12332 14956 18724 28112
Evaporating Temperature -20℃ Cooling capanity(W) 17350 18989 23478 29394 36285
Power(W) 11250 11868 14674 18371 22678
Coupling Tube coupling 5/8" 5/8" 3/4" 7/8" 7/8"
Suction coupling 1-5/8" 1-5/8" 1-5/8" 3-5/8" 1-5/8"
Overall dimensions  Length(L) mm 1162 1162 1360 1360 1360
Width(B) mm 450 500 500 500 500
Height(H) mm 875 781 781 781 781
Mounting dimensions Length(D) mm 600 600 800 800 800
Width(E) mm  380 400 400 400 400
Standard configuration of units: compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve wiring box, etc.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.

Model of units GXN4CQZD GXN5CQZD GXN6CQZD GXN8CQZD GXN10CQZD GXN12CQZD GXN15CQZD GXN18CQZD GXN25CQZD GXN30CQZD GXN40CQZD
Applicable Temperature(℃) 0~-40℃
Refrigerant R22
Power supply 380V 50Hz
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 3.3 3.3 3.3 3.3 4.8 6.3 7.5 9.1 15 18 25
Connection Size 11/2 11/4 11/2 11/2 1-1/2 11/2 11/2 11/2 2 2 2-1/2
Refrigerating capacity of compressor units Evaporating Temperature 0℃ Cooling capacity(W) 10160 13995 14670 - - - - - - - -
Powar(W) 3560 4928 5710 - - - - - - - -
Evaporating Temperature -10℃ Cooling capacity(W) 7640 10170 11270 14812 17620 20050 24100 - 40770 51345 59080
Powar(W) 3410 4238 4970 6420 7100 8240 9800 - 16990 20538 24620
Evaporating Temperature -20℃ Cooling capacity(W) 5450 7137 8080 10160 12030 13890 16100 19680 28530 36000 41430
Power(W) 3160 4461 4480 5710 6300 7500 10100 10840 17830 19890 25890
Evaporating Temperature -40℃ Cooling capanity(W) 2340 3024 3510 4630 5170 6400 7590 9060 13860 17478 19480
Power(W) 2600 3360 3690 4390 5300 5760 7060 8330 15400 29420 21640
Coupling Tube coupling 1/2" 1/2" 1/2" 1/2" 5/8" 5/8" 5/8" 5/8" 7/8" 7/8" 1-1/8"
Suction coupling 7/8" 7/8" 7/8" 7/8" 1-3/8" 1-3/8" 1-3/8" 1-3/8" 1-5/8" 1-5/8" 1-5/8"
Overall dimensions  Length(L) mm 972 972 972 972 1162 1162 1162 1162 1162 1360 1350
Width(B) mm 450 450 450 450 450 450 450 650 500 700 700
Height(H) mm 726 726 726 726 875 875 875 875 875 1100 950
Mounting dimensions Length(D) mm 500 500 500 500 600 600 600 600 800 800 800
Width(E) mm  380 380 380 380 380 380 380 400 400 400 400
Standard configuration of units: compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve wiring box, etc.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.

Model of units GXN4CQZD GXN5CQZD GXN6CQZD GXN8CQZD GXN10CQZD GXN12CQZD GXN15CQZD GXN18CQZD GXN20CQZD GXN25CQZD GXN30CQZD GXN40CQZD
Applicable Temperature(℃) 0~-40℃
Refrigerant R404A
Power supply 380V 50Hz
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 3.3  3.3  3.3  3.3  4.8  6.3  7.5  9.1  12  15  18  25
Connection Size 11/2 1-1/4 11/2 11/2 1-1/2 11/2 11/2 11/2 2-1/2
Refrigerating capacity of compressor units Evaporating Temperature 0℃ Cooling capacity(W) 12740  14810  18210  - - - - - - - - -
Powar(W) 3550  5200  5730  - - - - - - - - -
Evaporating Temperature -10℃ Cooling capacity(W) 9130  10980  12920  15730  19330  21710  26400  - - 47610  60012  67690
Powar(W) 3810  4580  5980  7410  8060  12100  12100  - - 19840  27010  28200
Evaporating Temperature -20℃ Cooling capacity(W) 6640  7860  9520  12000  14290  16330  19870  22540  25227  33390  42075  47310
Power(W) 3280  4900  5060  6200  7300  8300  10130  1170  13277  20870  22144  29570
Evaporating Temperature -40℃ Cooling capanity(W) 2940  4300  4630  5720  6840  7880  9600  10850  12294  15710  19764  22230
Power(W) 3020  4780  4250  4820  5600  6700  8160  9490  10784  17450  17337  24700
Coupling Tube coupling 1/2” 1/2" 1/2” 1/2” 5/8” 5/8” 5/8” 5/8” 3/4” 7/8” 3/4” 1-1/8”
Suction coupling 7/8” 7/8" 7/8” 7/8” 7/8” 1-3/8” 1-3/8” 1-3/8” 1-3/8” 1-5/8” 1-3/8” 1-5/8”
Overall dimensions  Length(L) mm  972  972    972  972  1162  1162  1162  1162  1162  1162  1162  1350
Width(B) mm  450  450    450  450    450  450  450  450  450  650  450  700
Height(H) mm  726  726    726  726    875  875  875  875  875  875  875  950
Mounting dimensions Length(D) mm  500  500    500  500    600  600  600  600  600  800  600  800
Width(E) mm   380  300    380  380    380  380  380  380  380  400  380  400
Standard configuration of units: compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve wiring box, etc.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.
