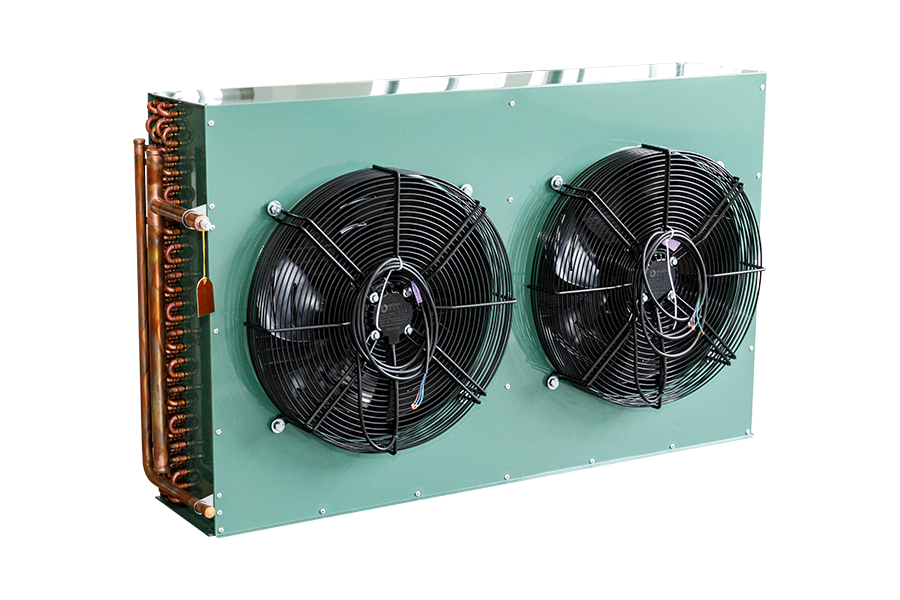

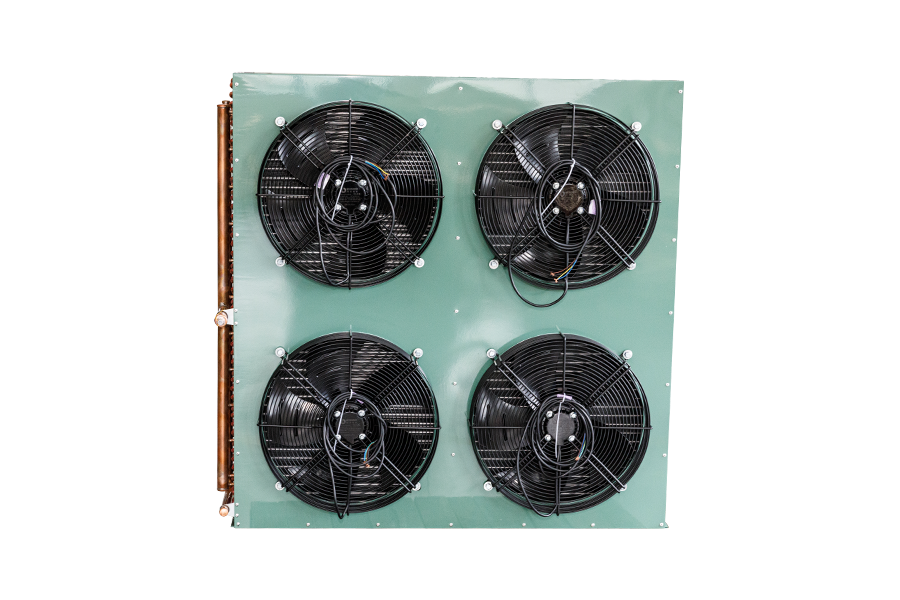

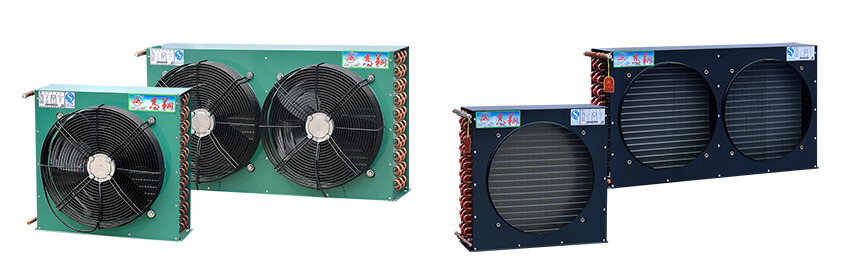

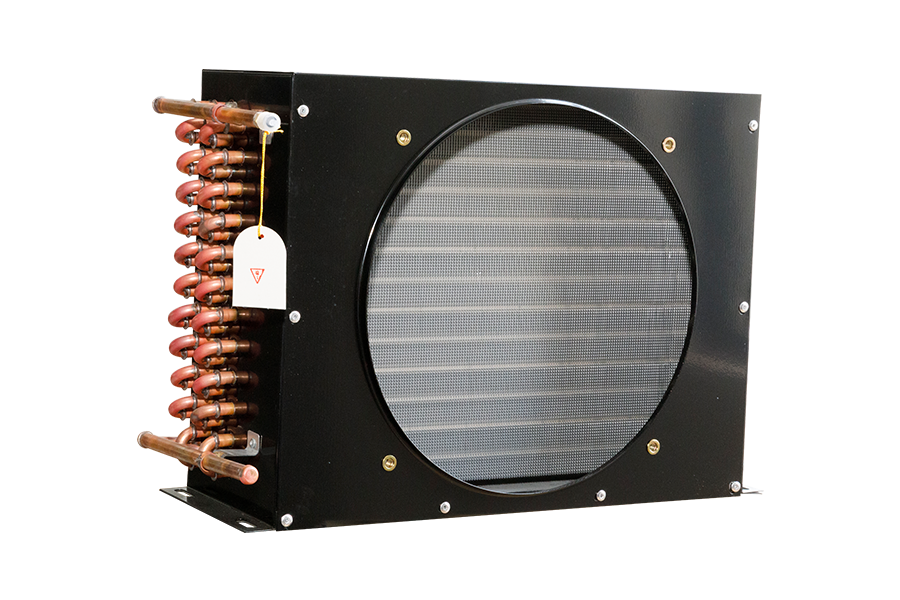

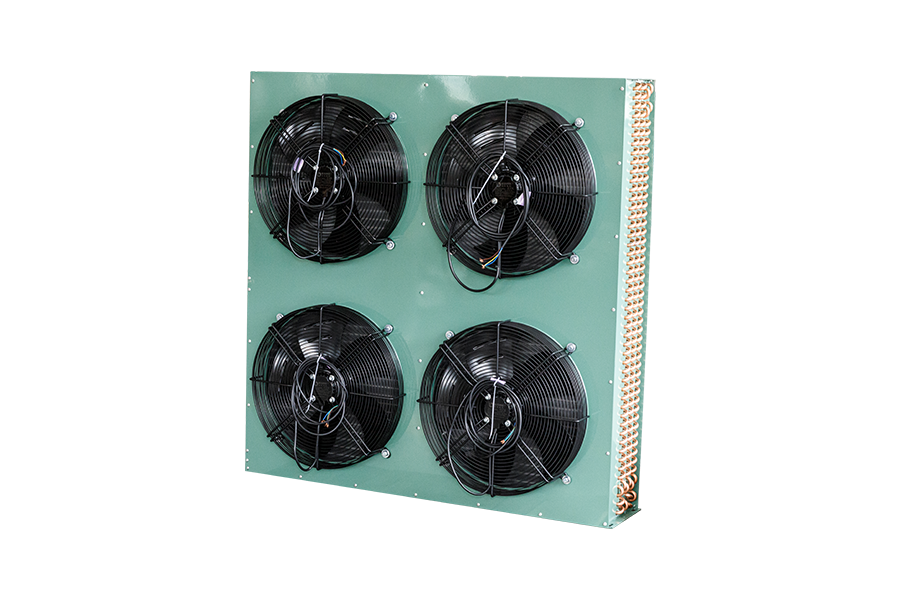

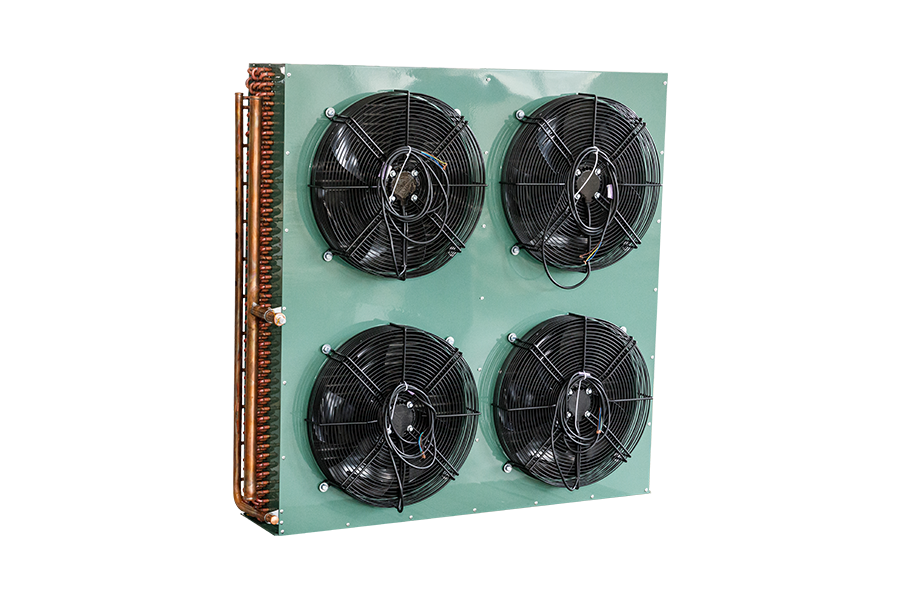

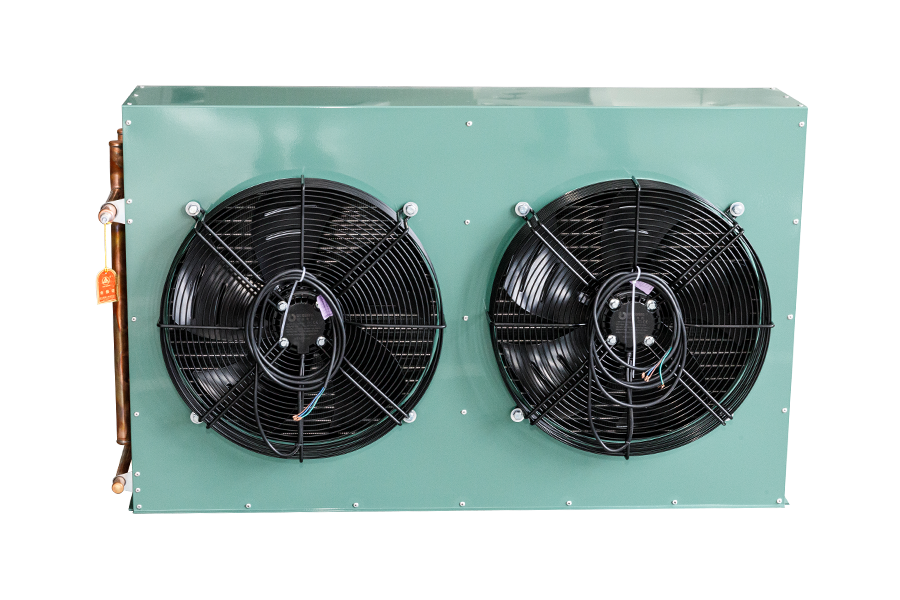

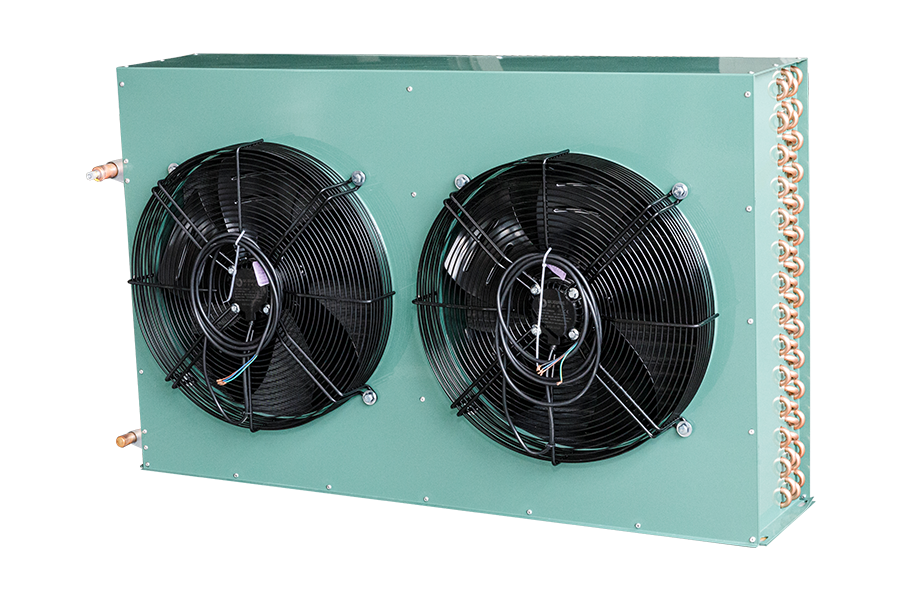

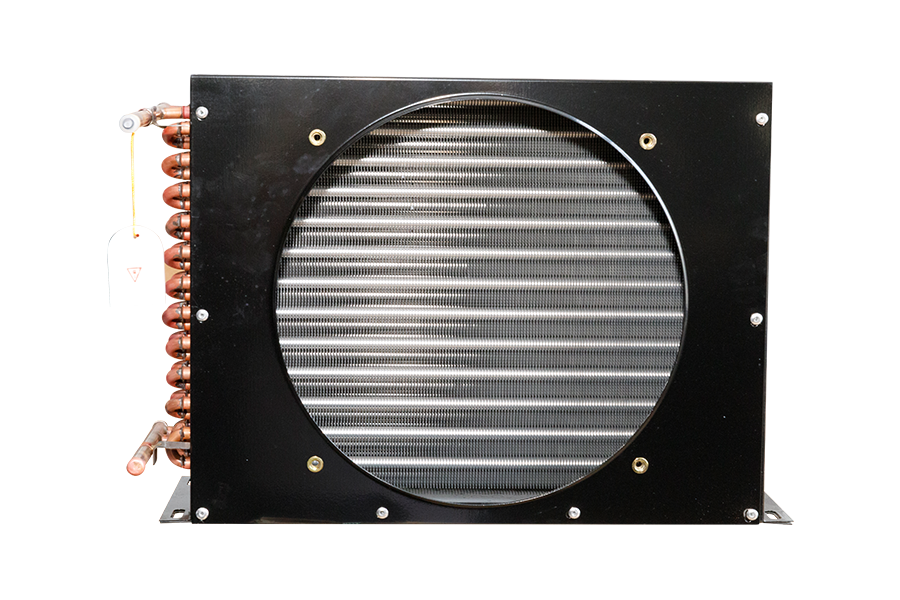

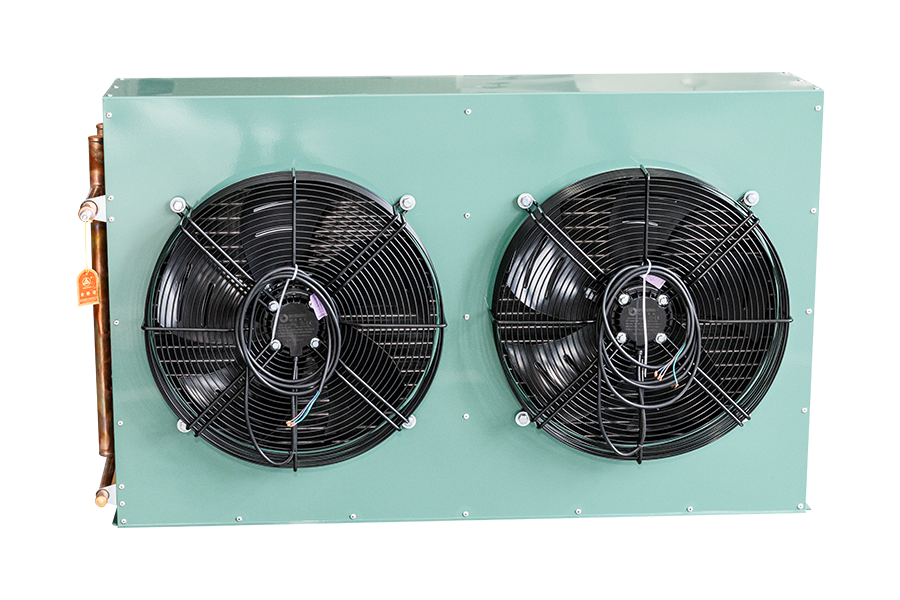

FNH Condenser

Air-cooled condenser is a kind of cooling equipment that is used in the cooling equipment. There are mainly four types of air-cooled condensers produced by our company: FNH type, FNV type, FNVB type, GP type, side blowing type, FNV type, FNVB type, FNU type . . FNH type can be widely used in sound requirements of the refrigeration equipment used;
Share to:

Product Features

Products Features
● High-quality steel shell, the surface spray, corrosion-resistant, beautiful appearance;
● The coil adopts the copper tube mis-arranging way, utilizes the mechanical expansion tube to make the copper tube and the fins closely combine, and the heat exchange effect is good;
● products after 2.5MPa tightness test and system sewage treatment;
● Applicable to R22, R134a, R404a, R407c and other refrigerants;
● FNH-type condenser are used gust stars, low-speed motor, with sound small, beautiful appearance;
● High-performance heat exchange coil, clean and dry;
● Aluminum fin punching for the "L" line extension of the film, expanded tube close contact heat transfer efficiency;
● condenser design width is reasonable, the distance between the blades and aluminum fins are greater than 1/3 the diameter of the blades to ensure that there is enough windward area of operation;
● shell spray processing, corrosion-resistant durable;
● Special-purpose products, please contact the company's sales department.

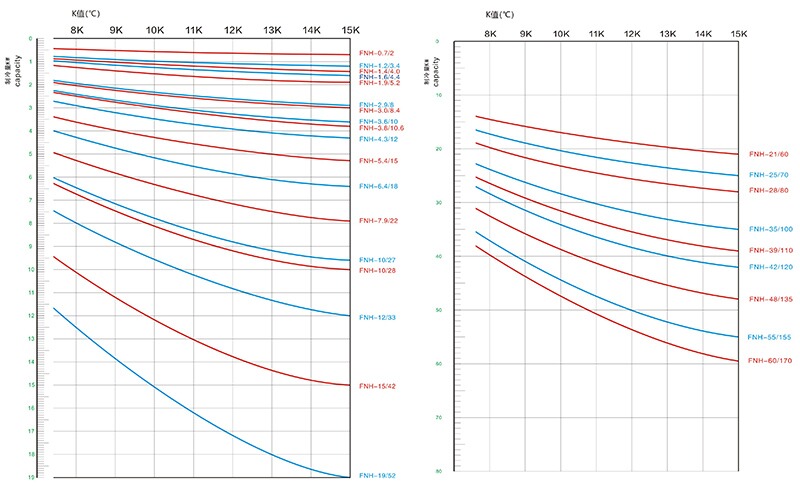

Technical Parameters:
Model Main parameters Parameter of fan motor Caliber of connecting tube
Heat removal quantity
t=15k(KW)
Condensing area

Diameter of

fan blade

Quantity Total air volume Power Voltage

Inlet

Outlet

W

m2

mm

N

m³/h

W

V

mm

mm

FNH-0.7/2

710

2

200

1

430

35

220

10

10

FNH-1.2/3.4

1217

3.4

200

1

430

35

220

10

10

FNH-1.4/4.0

1440

4

200

1

430

35

220

10

10

FNH-1.6/4.4

1566

4.4

250

1

910

60

220

10

10

FNH-1.9/5.2

1856

5.2

300

1

1530

75

220

10

10

FNH-2.9/8

2864

7

300

1

1530

75

220

12

12

FNH-3.0/8.4

3007

8.4

300

1

1530

75

220

12

12

FNH-3.8/10.6

3816

10.6

300

1

1530

75

220

12

12

FNH-3.6/10

3550

10

350

1

1800

90

380

16

12

FNH-4.3/12

4296

12

350

1

1800

120

380

16

12

FNH-5.4/15

5355

15

350

1

1800

120

380

16

12

FNH-6.4/18

6408

18

400

1

3000

120

380

16

12

FNH-7.9/22A

7876

22

400

1

3000

120

380

16

12

FNH-10/27

9968

27

400

1

3000

120

380

19

16

FNH-7.9/22B

7876

22

350

2

3600

2×120

380

16

12

FNH-10/28

9968

28

350

2

3600

2×120

380

19

14

FNH-12/33

11880

33

400

2

6000

2×120

380

19

14

FNH-15/42

15036

42

400

2

6000

2×120

380

19

16

FNH-19/52

18668

52

400

2

6000

2×120

380

19

16

FNH-21/60

21360

60

450

2

9000

2×180

380

22

19

FNH-25/70

24640

70

450

2

9000

2×180

380

25

19

FNH-28/80

28240

80

450

2

9000

2×180

380

25

19

FNH-35/100

35400

100

500

2

13140

2×450

380

25

19

FNH-39/110

39050

110

500

2

13140

2×450

380

30

19

FNH-42/120

42240

120

550

2

17440

2×600

380

30

19

FNH-48/135

47799

135

550

2

17440

2×600

380

30

19

FNH-55/155

55025

155

600

2

21640

2×780

380

30

22

FNH-60/170

59500

170

600

2

21640

2×780

380

30

22

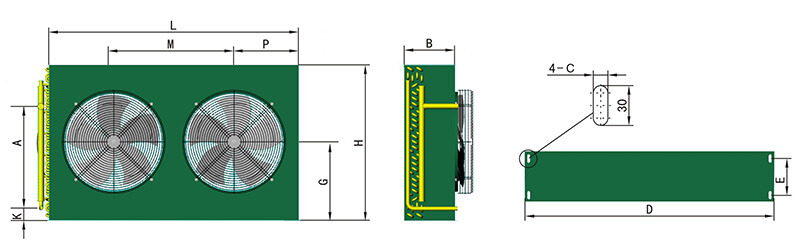

Dimensional parameters
model Copper tube Dimensions Installation size Connection size Fan arrangement size
Number of rows × number of rings

L

B

H

D

E

C

A

K

G

P

M

N×W

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

FNH-0.7/2

2×4

250

120

240

275

70

9

200

24

115

125



FNH-1.2/3.4

3×4

250

120

240

275

70

9

200

24

115

125



FNH-1.4/4.0

3×4.5

300

120

255

290

90

6

225

24

128

150



FNH-1.6/4.4

3×5

325

120

280

290

70

6

250

24

140

162



FNH-1.9/5.2

3×6

370

130

340

370

100

6

290

25

170

185



FNH-2.9/8

4×6

370

150

340

370

120

6

290

25

170

185



FNH-3.0/8.4

3×6

450

170

350

475

120

9

275

44

175

225



FNH-3.8/10.6

4×6

450

170

350

475

120

9

275

44

175

225



FNH-3.6/10

3×8

450

170

420

475

120

9

375

30

210

225



FNH-4.3/12

4×8

440

180

420

430

130

9

320

50

210

220



FNH-5.4/15

4×9

490

180

470

480

130

9

370

50

235

245



FNH-6.4/18

4×10

530

180

520

520

130

11

420

50

260

265



FNH-7.9/22A

5×10

530

200

520

520

150

11

420

50

260

265



FNH-10/27

6×9

590

240

470

580

190

11

425

35

240

295



FNH-7.9/22B

4×8

810

180

420

800

130

11

320

50

210

210

400

FNH-10/28

4×9

890

180

470

880

130

11

420

50

260

220

430

FNH-12/33

4×10

940

180

520

930

130

11

420

50

260

240

450

FNH-15/42

5×10

940

200

520

930

150

11

420

50

260

240

450

FNH-19/52

5×12

940

200

620

930

150

11

500

50

310

240

450

FNH-21/60

5×12

1160

240

620

1150

170

11

500

50

310

220

560

FNH-25/70

4×14

1160

240

720

1150

190

11

500

50

360

240

560

FNH-28/80

4×16

1160

240

820

1150

190

11

500

50

410

220

560

FNH-35/100

4×17

1350

260

870

1340

210

11

500

50

435

240

660

FNH-39/110

4×18

1350

260

920

1340

210

11

500

50

460

240

660

FNH-42/120

4×20

1350

260

1020

1340

210

11

500

50

510

240

660

FNH-48/135

5×18

1350

260

920

1340

210

11

500

50

460

240

660

FNH-55/155

5×20

1400

300

1020

1390

250

11

500

50

510

240

680

FNH-60/170

5×22

1400

300

1120

1390

250

11

500

50

560

240

680
