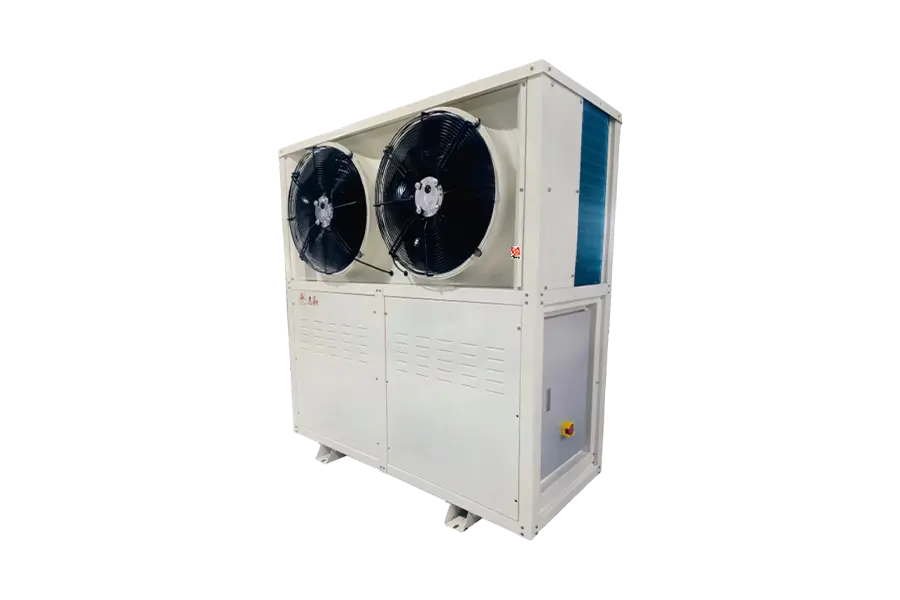

Smart Turnkey Equipment Series

We use refrigeration compressors from international brands, which offer stable quality, high reliability, low noise, and high efficiency.
The unit’s condenser features a top-and-bottom compartmentalized design for easy commissioning and maintenance.
High-efficiency internally threaded copper tubes are used, providing a large surface area for excellent heat exchange.
Both the air cooler and condenser fan panels utilize high-tensile steel louvers to reduce airflow resistance, improve fan efficiency, increase airflow, and reduce noise.

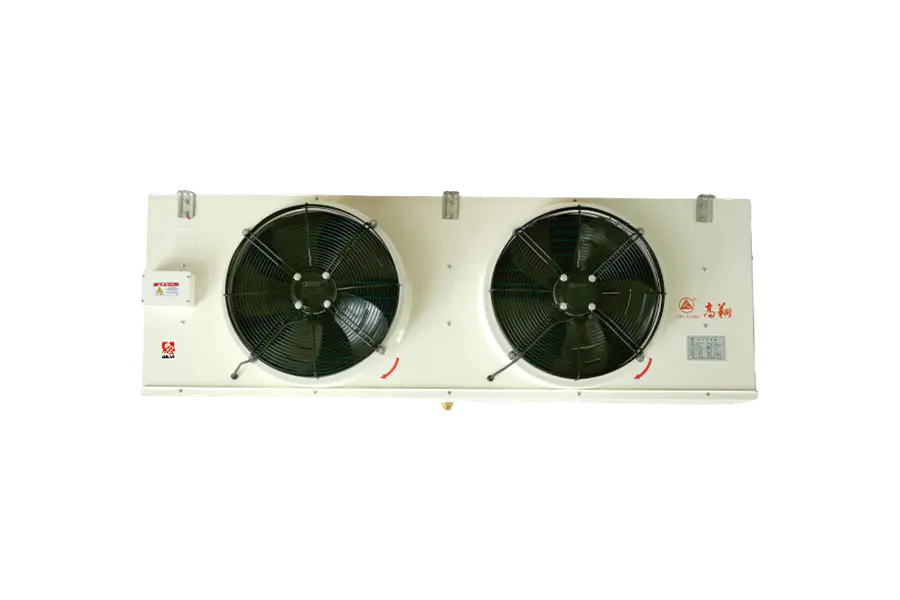

The air cooler features a small-diameter, high-cooling-capacity design, incorporating proprietary core technologies in fluid heat exchange, wave-splitting technology, manufacturing processes, and engineering applications, resulting in highly efficient product performance.
It comes with a matching electrical control panel equipped with comprehensive protection features.

Share to:

Product Features

Complete Equipment for 0°C Cold Storage Refrigeration Systems
Model of complete equipment GXCS-3-BFG GXCS-5-BFG GXCS-6-BFG GXCS-9-BFG GXCS-12-BFG GXCS-15-BFG
Applicable Cold Storage Temperature(℃) 0℃
Refrigerant R507A
Power supply 380V/3P/50Hz
Model  GXW3BBFZG GXW5BBFZG GXW6BBFZG GXW9BBFZG GXW12BBFZG GXW15BBFZG
Compressor Cooling capacity 6580 9070 11380 16730 21000 23700
Condenser Quantity of Fan(piece) 1 1 2 2 2 2
Air volume(m³/h) 7400 7300 2×7400 2×7300 2×10500 2×10200
Power of Fan(W) 600 600 2×600 2×600 2×800 2×800
Efficient air cooler Model  GXDL-9/42-353-14.5 GXDL-12/55-353-14.5 GXDL-14/69-452-14.5 GXDL-21/103-453-14.5 GXDL-25/118-503-14.5 GXDL-33/177-503-14.5
Quantity of Fan(piece) 3 3 2 3 3 3
Air volume(m³/h) 6580 6320 9130 13690 17260 16720
Power of Fan(W) 3×140 3×140 2×250 3×250 3×450 3×450
Coupling Tube coupling 1/2" 1/2" 5/8" 5/8" 7/8" 7/8"
Suction coupling 1-1/8" 1-1/8" 1-1/8" 1-1/8" 1-1/8" 1-5/8"

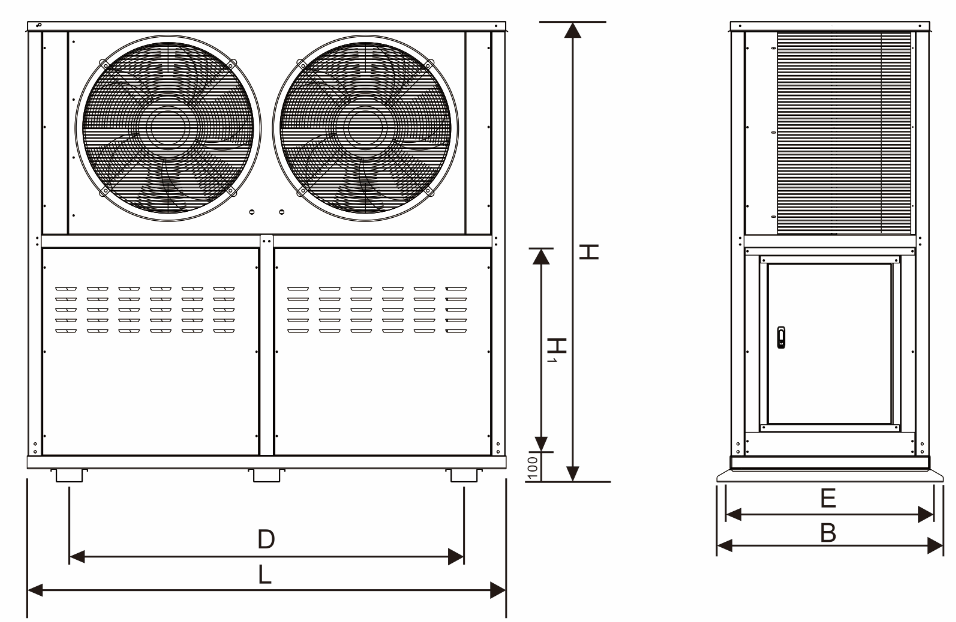

Overall dimensions  Length(L) mm 1060 1060 1060 1550 1550 1743
Width(B) mm 660 660 660 760 760 860
Height(H) mm 1530 1530 1530 1600 1600 1750
Height(H₁) mm 700 700 700 770 770 790
Mounting dimensions Length(D) mm 550 550 550 900 900 1040
Width(E) mm  610 610 610 710 710 810
Note: The above complete set of product air coolers includes solenoid valves, expansion valves, and secondary filters.
Explanation: Evaporation temperature -9℃, condensation temperature +47℃, liquid undercooling (after condenser) 5K, effective overheating Degree 6K, additional superheat 1K.


Complete Equipment for a -18°C Warehouse Cooling System
Model of complete equipment GXCS-5-BFZ GXCS-6-BFZ GXCS-10-QFZ GXCS-12-BFZ GXCS-15-BFZ GXCS-20-BFZ
Applicable Cold Storage Temperature(℃) -18℃
Refrigerant R507A
Power supply 380V/3P/50Hz
Model  GXW5BBFZD GXW6BBFZD GXW10BBFZD GXW12BBFZD GXW15BBFZD GXW20BBFZD
Compressor Cooling capacity 5660 6960 9290 11490 16510 23700
Condenser Quantity of Fan(piece) 1 1 2 2 2 2
Air volume(m³/h) 7400 7300 2×7400 2×7300 2×10500 2×10200
Power of Fan(W) 600 600 2×600 2×600 2×800 2×800
Efficient air cooler Model  GXDD-7/42-353-16 GXDD-9/52-452-16 GXDD-13/79-453-16 GXDD-15/90-503-16 GXDD-20/135-503-16 GXDD-24/157-553-16
Quantity of Fan(piece) 3 2 3 3 3 3
Air volume(m³/h) 6320 9130 13690 17260 16720 20130
Power of Fan(W) 3×140 2×250 3×250 3×450 3×450 3×550
Coupling Tube coupling 1/2" 1/2" 1/2" 5/8" 5/8" 7/8"
Suction coupling 1-1/8" 1-1/8" 1-3/8" 1-5/8" 1-5/8" 1-5/8"

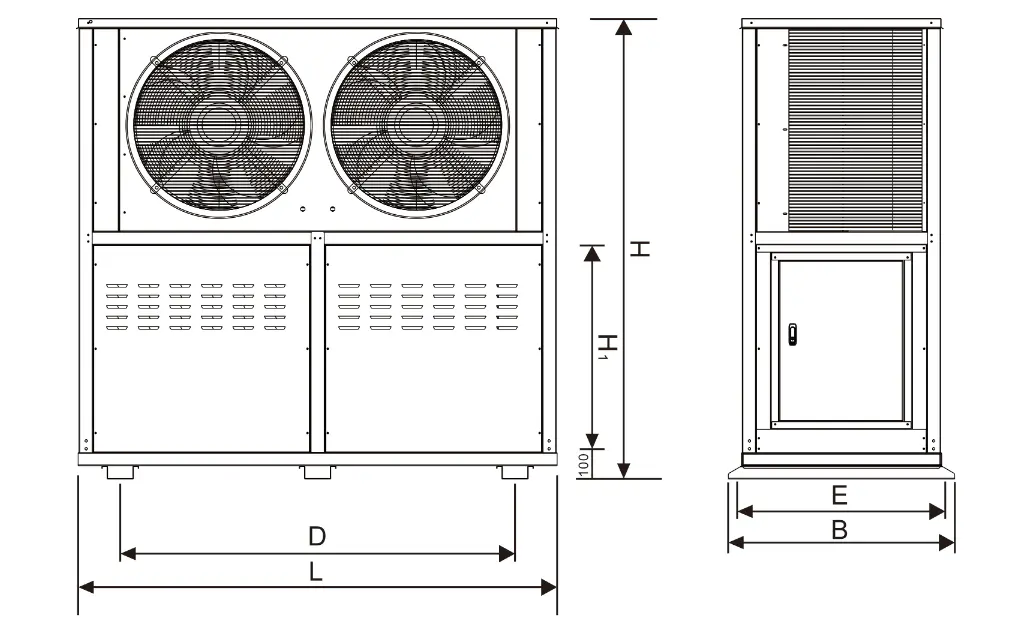

Overall dimensions  Length(L) mm 1060 1060 1550 1550 1743 1820
Width(B) mm 660 660 760 760 860 860
Height(H) mm 1530 1530 1600 1600 1750 1750
Height(H₁) mm 700 700 770 770 790 790
Mounting dimensions Length(D) mm 550 550 900 900 1040 1500
Width(E) mm  610 610 710 710 810 810
Note: The above complete set of product air coolers includes solenoid valves, expansion valves, and secondary filters.
Explanation: Evaporation temperature -26℃, condensation temperature +47℃, liquid undercooling (after condenser) 5K, effective overheating Degree 6K,additional superheat 1K.


Complete equipment for -25°C cold storage cooling systems
Model of complete equipment GXCS-5-BFD GXCS-6-BFD GXCS-10-QFD GXCS-12-BFD GXCS-15-BFD GXCS-20-BFD
Applicable Cold Storage Temperature(℃) -25℃
Refrigerant R507A
Power supply 380V/3P/50Hz
Model  GXW5BBFZD GX6BBFZD GX10BBFZD GXW12BBFZD GXW15BBFZD GXW20BBFZD
Compressor Cooling capacity 3710 4520 5720 7270 10780 12970
Condenser Quantity of Fan(piece) 1 1 2 2 2 2
Air volume(m³/h) 7400 7300 2×7400 2×7300 2×10500 2×10200
Power of Fan(W) 600 600 2×600 2×600 2×800 2×800
Efficient air cooler Model  GXDJ-5/29-353-19 GXDJ-6/36-452-19 GXDJ-9/54-453-19 GXDJ-9/61-503-19 GXDJ-12/92-503-19 GXDJ-16/107-553-19
Quantity of Fan(piece) 3 2 3 3 3 3
Air volume(m³/h) 6320 9130 13690 17260 16720 20130
Power of Fan(W) 3×140 2×250 3×250 3×450 3×450 3×550
Coupling Tube coupling 3/8" 1/2" 1/2" 1/2" 5/8" 5/8"
Suction coupling 1-1/8" 1-1/8" 1-3/8" 1-3/8" 1-5/8" 2-1/8"

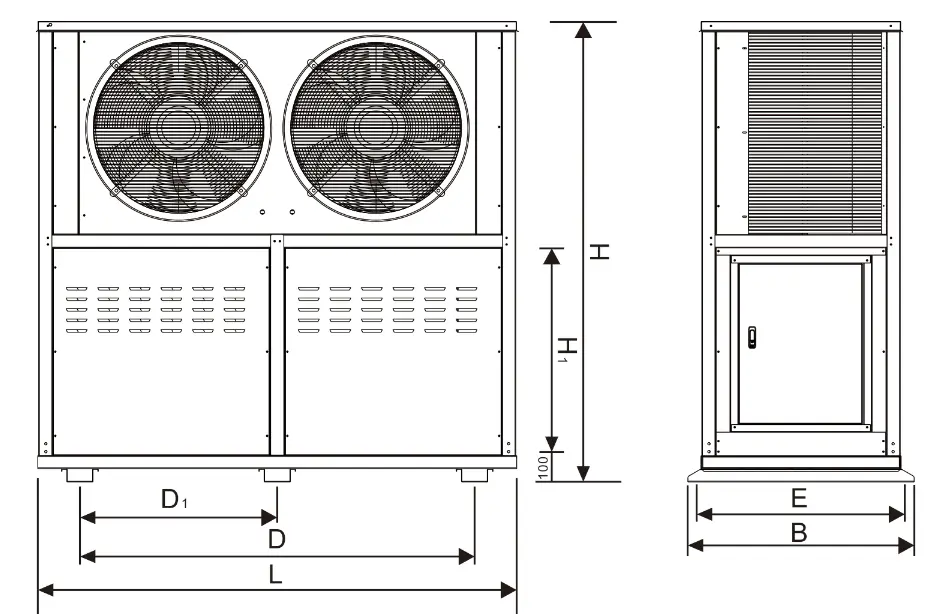

Overall dimensions  Length(L) mm 1060 1060 1550 1550 1743 1820
Width(B) mm 660 660 760 760 860 860
Height(H) mm 1530 1530 1600 1600 1750 1750
Height(H₁) mm 700 700 770 770 790 790
Mounting dimensions Length(D) mm 550 550 900 900 1040 1500
Width(E) mm  610 610 710 710 810 810
Note: The above complete set of product air coolers includes solenoid valves, expansion valves, and secondary filters.
Explanation: Evaporation temperature -33℃, condensation temperature +47℃, liquid undercooling (after condenser) 5K, effective overheating Degree 6K,additional superheat 1K.
