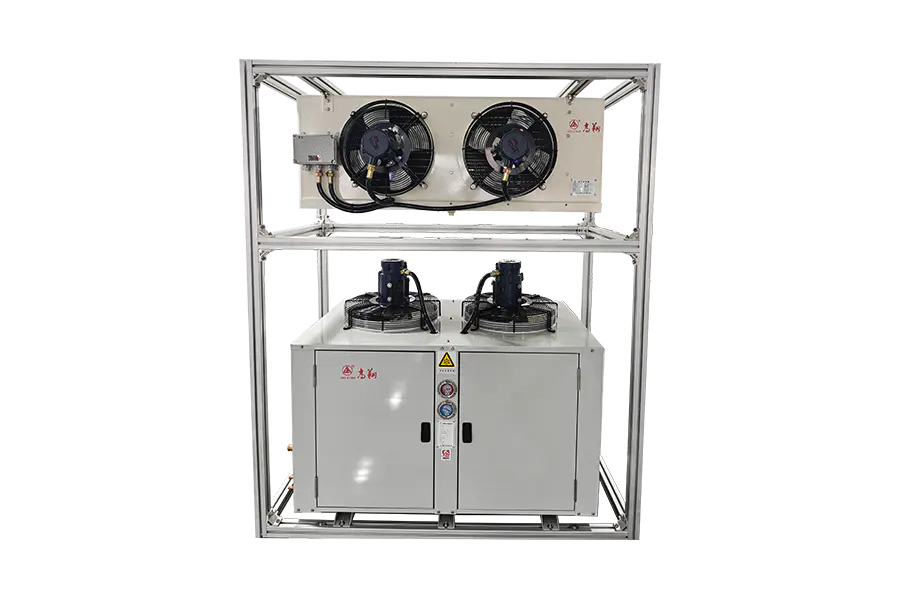

Smart Complete Explosion-Proof Equipment Series

·Scope of Application
New energy battery cold storage facilities, oil and gas recovery projects, chemical production and raw material storage facilities, and high-risk special industries involving flammable and explosive materials.
·Certification Coverage
7.5 kW, 12 kW, 20 kW, 28 kW, 35 kW, 55 kW, 70 kW, and 83 kW. The wide range of certifications meets the cooling capacity requirements for various storage capacities.
·Product Advantages
The products have obtained CNEX international explosion-proof certification. The installation of explosion-proof units complies with the requirements of the standard “Explosive Atmospheres—Part 15: Design, Selection, and Installation of Electrical Equipment (GB/T 3836.15-2017).” Upon customer request, units can be assembled using dedicated explosion-proof compressors, with the entire unit treated for explosion protection. The units are paired with corresponding explosion-proof air coolers, eliminating the drawbacks of users purchasing units separately and attempting to match them with explosion-proof air coolers on their own, which can result in improper configurations. The complete system is shipped with explosion-proof certification and can be configured with explosion-proof electrical control cabinets according to customer needs, providing customers with safe and efficient complete sets of explosion-proof equipment.

Share to:

Product Features

Semi enclosed air-cooled medium low temperature explosion-proof unit
Model of complete equipment GX7.5FB GX12FB GX20FB GX28FB
Model GXW5BBFZDFB GXW9BBFZDFB GXW10BBFZDFB GXW12BBFZDFB
Evaporative Temperature 0~-40℃
Refrigerant R404A/R507A
Power Supply 380V/50Hz
Wind Condenser Model FNU-15/42-451-C1.9 FNU-21/60-551-C1.8 FNU-28/80-452-C1.8 FNU-35/100-502-C1.8
Matching expansion valve model TGES4 TGES5 TGES7.5 TGES7.5
Water Frost Model DDSFB40 DDSFB60 DDSFB80 DDSFB100
Compressor Model 4DES-5Y 4TES-9Y 4PES-10Y/4PES-12Y 4NES-14Y
Number of Compressors
Capacity Evaporation temperature 0℃ Cooling capacity 19.660  31.200  35.900  42.600
Power 7.020  11.000  12.220  14.660
Evaporation temperature -10℃ Cooling capacity 13.290  20.800  23.600  28.300
Power 6.110  9.280  10.270  12.480
Evaporation temperature -20℃ Cooling capacity 8.090  12.380  13.820  16.820
Power 5.000  7.340  8.030  9.920
Evaporation temperature -30℃ Cooling capacity 4.890  7.220  7.820  9.790
Power 3.820  5.380  5.740  7.240
Evaporation temperature -40℃ Cooling capacity 2.680  3.639  3.760  4.990
Power 2.680  3.610  3.620  4.720
Interface Suction pipe interface(mm) 28  28  28  35
Liquid outlet pipe interface(mm) 12  16  16  16
Size Length(L) mm 900  900  1330  1330
Width(B) mm 770  770  850  950
Height(H) mm 780  995  965  1080

Semi enclosed air-cooled medium low temperature explosion-proof unit
Model of complete equipment GX35FB GX55FB GX70FB GX83FB
Model GXW18BBFZDFB GXW18BBFZDFB GXW18BBFZDFB GXW18BBFZDFB
Evaporative Temperature
Refrigerant
Power Supply
Wind Condenser Model FNVB-55/155-552-C2.0 FNVB-55/155-552-C2.0 FNVB-83/240-553-C2.0 FNVB-138/400-634-C2.0
Matching expansion valve model TGES11 TGES13 TGES18 TGES21
Water Frost Model DDSFB140 DDSFB160 DDSFB260 DDSFB310
Compressor Model 4HE-18Y 4GE-23Y 6GE-34Y 6FE-44Y
Number of Compressors
Capacity Evaporation temperature 0℃ Cooling capacity 56.400  65.000  95.500  114.600
Power 19.770  23.700  35.000  41.400
Evaporation temperature -10℃ Cooling capacity 38.500  44.600  66.100  79.200
Power 16.890  20.100  30.100  36.000
Evaporation temperature -20℃ Cooling capacity 23.600  27.600  41.300  49.400
Power 13.660  16.240  24.600  29.600
Evaporation temperature -30℃ Cooling capacity 14.250  16.970  25.800  30.500
Power 10.350  12.330  18.950  22.700
Evaporation temperature -40℃ Cooling capacity 7.650  9.450  14.650  16.730
Power 7.230  8.710  13.560  16.070
Interface Suction pipe interface(mm) 42  54  54  54
Liquid outlet pipe interface(mm) 22  22  22  28
Size Length(L) mm 1650  1650  2500  3550
Width(B) mm 1000  1000  1000  1050
Height(H) mm 1850  1850  1950  1975

Semi-enclosed air-cooled medium-high temperature explosion-proof unit
Model of complete equipment GX12FB GX20FB GX28FB GX35FB GX55FB GX70FB
Model GXW10BBFZGFB GXW15BBFZGFB GXW20BBFZGF3 GXW25BBFZGFB GXW30BBFZGFB GXW40BBFZGFB
Evaporative Temperature 0~-40℃
Refrigerant R404A/R507A
Power Supply 380V/50Hz
Wind Condenser Model FNM-35/100-502-C1.8 FNU-46/130-552-C1.8 FNI-59/170-602-C1.8 FNVB-73/210-632-C2.0 FNVB-104/300-633-C2.0 FNMB-138/400-634-C2.0
Matching expansion valve model TGES7.5 TGES11 TCES11 TGES13 TGES18 TGES21
Water Frost Model DLSFB105 DLSFB125 DLSFB180 DLSFB185 DLSFB260 DLS=B410
Compressor Model 4VES-10Y 4PES-15Y 4NES-20Y 4HE-25Y 4GE-30Y 6GE-40Y
Number of Compressors
Capacity Evaporation temperature 0℃ Cooling capacity 25.800  35.800  42.600  55.700  65.000  92.500
Power 8.630  12.070  14.320  18.870  23.700  32.300
Evaporation temperature -10℃ Cooling capacity 17.080  23.500  28.300  37.800  43.400  63.300
Power 7.320  10.170  12.200  16.190  18.170  28.000
Evaporation temperature -20℃ Cooling capacity 10.030  13.710  16.880  22.900  26.500  38.800
Power 5.800  7.970  9.750  13.140  15.200  23.000
Evaporation temperature -30℃ Cooling capacity 5.730  7.740  9.870  13.660  15.950  23.500
Power 4.240  5.730  7.260  9.960  11.560  17.690
Evaporation temperature -40℃ Cooling capacity 2.810  3.720  5.120  7.110  8.510  12.460
Power 2.790  3.680  5.010  6.900  8.070  12.440
Interface Suction pipe interface(mm) 28  42  42  54  54  54
Liquid outlet pipe interface(mm) 16  16  22  22  22  28
Size Length(L) mm 1330  1730  1730  1800  2700  2900
Width(B) mm 950  1050  1050  1100  1050  1100
Height(H) mm 1080  1095  1120  2070  2145  2070

Product Details
