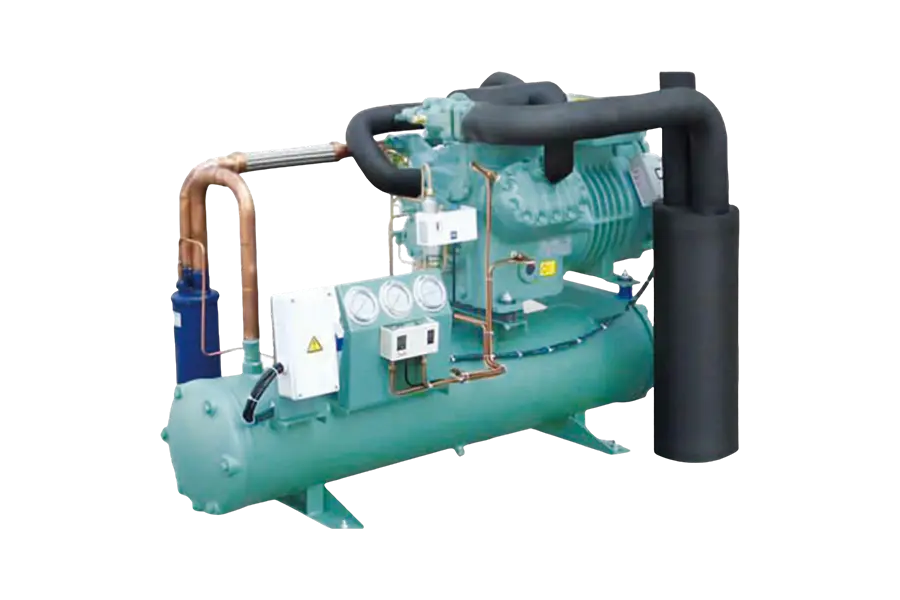

Two-Stage Semi-Hermetic Air-Cooled Unit

The unit is equipped with a single-stage, two-stage, semi-hermetic refrigeration compressor, ensuring consistent quality and high reliability.
It features a complete set of refrigeration components from well-known imported brands, guaranteeing reliable operation.
The unit utilizes a high-efficiency shell-and-tube condenser, offering excellent heat exchange efficiency and a long service life.
The unit is equipped with an intercooler, which significantly increases cooling capacity and energy efficiency.

Share to:

Product Features

Model of units GXN5BBFDS GXN8BBFDS GXN12BBFDS GXN16BBFDS GXN20BBFDS GXN25BBFDS GXN30BBFDS
Applicable Temperature(℃) -25~-40℃
Refrigerant R404A/R507A
Power supply 380V/3/50HZ
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 3 3 4 6 7 8 10
Specification of water-cooled 1-1/4 1-1/2 2 2 2 2 2
Capacity Evaporating Temperature -25℃ Cooling capacity(W) 8050 11390 17204 24012 27692 31464 37444
Powar(W) 4692 6725 10166 14720 17048 19596 23184
Evaporating Temperature -30℃ Cooling capacity(W) 6679 9476 14674 20516 23736 27048 32108
Power(W) 4361 6238 9412 13414 15548 17848 21252
Evaporating Temperature -40℃ Cooling capanity(W) 4471 6366 10194 14426 16652 19044 22632
Power(W) 3643 5198 7811 10948 12687 14582 17443
Interface Liquid outlet pipe interface 5/8" 5/8" 5/8" 3/4" 7/8" 7/8" 7/8"
Suction pipe interface 1-1/8" 1-1/8" 1-3/8" 1-5/8" 1-5/8" 1-5/8" 1-5/8"
Overall dimensions  Length(L) mm 1016 1016 1716 1175 1175 1266 1616
Width(B) mm 481 481 482 536 536 536 536
Height(H) mm 677 677 716 809 809 809 809
Mounting dimensions Length(D) mm 700 700 700 800 800 800 1000
Width(E) mm  230 280 280 315 315 330 330
The product's cooling capacity is based on a condensing temperature of 40°C. Our standard medium- and high-temperature units are equipped with water-cooled condensers and accessories suitable for cold storage facilities operating below 0°C. For temperatures above 0°C, a larger water-cooled condenser is required.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 40℃.
·Configuration can be added according to customers' requirements.
