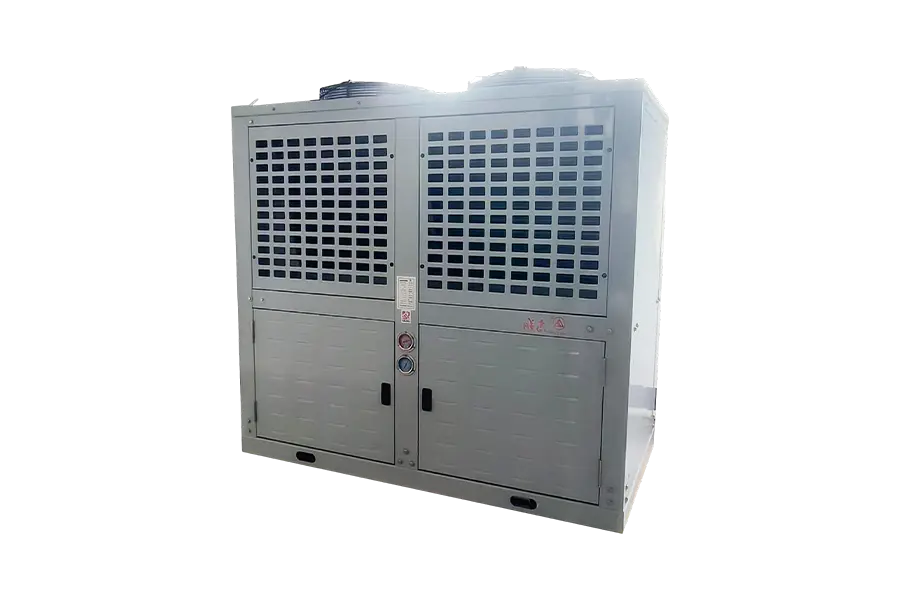

Two-Stage Semi-Hermetic Air-Cooled Unit

The unit is equipped with a single-unit, two-stage, semi-hermetic refrigeration compressor, ensuring consistent quality and high reliability.
It features a complete set of refrigeration components from well-known imported brands, guaranteeing reliable operation.
The unit is equipped with an intercooler, which significantly increases cooling capacity and energy efficiency.
It utilizes a copper-tube-and-aluminum-fin condenser, offering high heat exchange efficiency and a long service life.

Share to:

Product Features

Model of units GXW5BBFDS GXW8BBFDS GXW12BBFDS GXW16BBFDS GXW20BBFDS GXW25BBFDS GXW30BBFDS
Applicable Temperature(℃) -25~-40℃
Refrigerant R404A/R507A
Power supply 380V/3/50HZ
Condenser Quantity of Fan(piece) 2 2 2 2 2 2 3
Air volume(m³/h) 6200 9000 10600 14800 18200 19800 22200
Power of Fan(W) 2*180 2*250 2*449 2*670 2*825 2*937 3*670
Capacity Evaporating Temperature -25℃ Cooling capacity(W) 7884 11141 16799 23460 26956 30728 36432
Powar(W) 5337 7621 11662 16925 19682 22574 26482
Evaporating Temperature -30℃ Cooling capacity(W) 6541 9936 14306 20056 23092 26404 31188
Power(W) 4969 7087 10852 15526 18072 20734 24458
Evaporating Temperature -40℃ Cooling capanity(W) 4379 6228 9945 14085 16256 18584 21988
Power(W) 4196 5974 9141 12895 15036 17238 20392
Interface Liquid outlet pipe interface 1/2" 1/2" 5/8" 7/8" 7/8" 7/8" 7/8"
Suction pipe interface 1-1/8" 1-1/8" 1-3/8" 1-5/8" 1-5/8" 1-5/8" 1-5/8"
Overall dimensions  Length(L) mm 1200 1300 1500 1650 1800 1800 2500
Width(B) mm 850 900 900 1000 1050 1100 1000
Height(H) mm 583 683 1585 1780 1920 2020 1830
Mounting dimensions Length(D) mm 1160 1260 800 950 1100 1100 1800
Width(E) mm  650 700 850 950 1000 1050 950
The product's cooling capacity is based on a condensing temperature of 32°C. Our standard medium- and high-temperature units are equipped with water-cooled condensers and accessories suitable for cold storage facilities operating below 0°C. For temperatures above 0°C, a larger water-cooled condenser is required.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 32℃.
·Configuration can be added according to customers' requirements.
