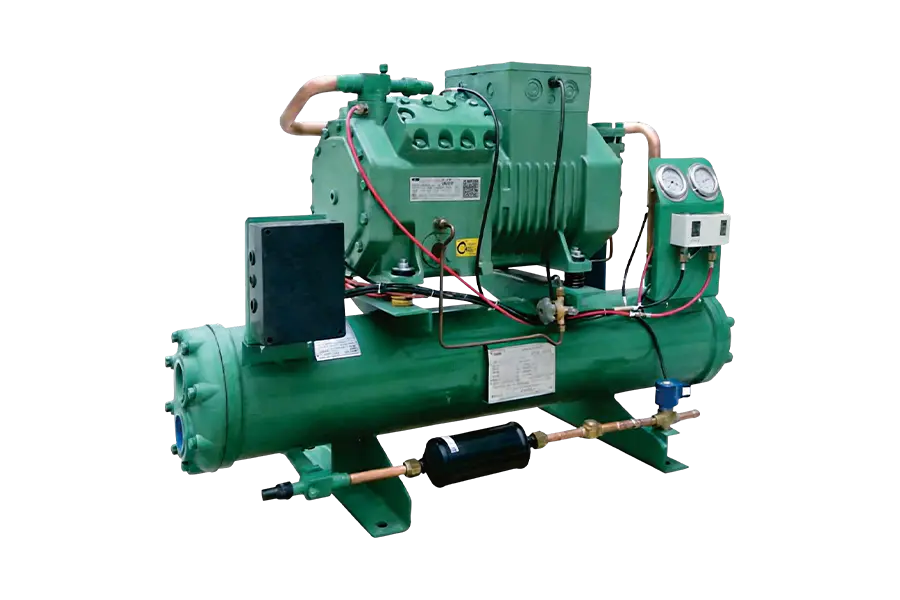

Semi-Hermetic Water-Cooled Chiller

The unit is equipped with a Bitzer semi-hermetic refrigeration compressor, which offers consistent quality and reliable operation.
It features a high-efficiency shell-and-tube condenser, providing excellent heat exchange efficiency and a long service life.
The compressor operates quietly and efficiently, and the unit has an attractive design.

Share to:

Product Features

Model of units GXN2BBZD GXN3BBZD GXN4BBZD GXN5BBZD GXN9BBZD GXN12BBZD
Applicable Temperature(℃) 0 ~ -40℃
Refrigerant R404A/R507A
Power supply 380V/3/50HZ
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 2 2 3 3 5 6
Specification of water-cooled 1 1 1-1/4 1-1/4 1-1/4 1-1/2
Capacity Evaporating Temperature 7.5℃ Cooling capacity(W) 9639 12195 16929 19530 31140 35910
Powar(W) 3320 4150 5710 6540 10270 11480
Evaporating Temperature 0℃ Cooling capacity(W) 6579 8379 11466 13266 20880 23850
Powar(W) 2900 3650 5060 5800 8830 9850
Evaporating Temperature -10℃ Cooling capacity(W) 4275 5499 7443 8613 13293 14958
Power(W) 2380 3030 4200 4820 7100 7860
Evaporating Temperature -20℃ Cooling capanity(W) 1899 2511 3447 3996 5832 6282
Power(W) 1540 2020 2770 3200 4440 4740
Interface Liquid outlet pipe interface 3/8" 3/8" 3/8" 1/2" 1/2" 1/2"
Suction pipe interface 5/8" 7/8" 1-1/8" 1-1/8" 1-1/8" 1-1/8"
Overall dimensions  Length(L) mm 946 946 972 972 972 1162
Width(B) mm 300 300 400 400 450 450
Height(H) mm 498 498 604 604 690 690
Mounting dimensions Length(D) mm 500 500 500 500 500 600
Width(E) mm  250 250 300 300 380 380
The product's cooling capacity is based on a condensing temperature of 40°C. Our standard medium- and high-temperature units are equipped with water-cooled condensers and accessories suitable for cold storage facilities operating below 0°C. For temperatures above 0°C, a larger water-cooled condenser is required.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 40℃.
·Configuration can be added according to customers' requirements.

Model of units GXN14BBZD GXN18BBZD GXN23BBZD GXN28BBZD GXW34BBZD GXW44BBZD
Applicable Temperature(℃) 0 ~ 40℃
Refrigerant R404A/R507A
Power supply 380V/3/50HZ
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 7 9 11 14 16 19
Specification of water-cooled 2001/1/2 2 2 2 2 2-1/2
Capacity Evaporating Temperature 7.5℃ Cooling capacity(W) 42480 55980 64620 82170 94680 113940
Powar(W) 13740 18500 22100 27000 32600 39000
Evaporating Temperature 0℃ Cooling capacity(W) 28440 38340 44370 56340 65610 78750
Powar(W) 11930 16080 19130 23600 28500 34300
Evaporating Temperature -10℃ Cooling capacity(W) 18090 25110 29250 36900 43740 52290
Power(W) 9670 13230 15680 19490 23600 28600
Evaporating Temperature -20℃ Cooling capanity(W) 7938 11601 13878 17118 21240 24930
Power(W) 6030 8710 10340 12710 15910 19260
Interface Liquid outlet pipe interface 5/8" 3/4" 3/4" 7/8" 7/8" 7/8"
Suction pipe interface 1-3/8" 1-5/8" 2-1/8" 2-1/8" 2-1/8" 2-1/8"
Overall dimensions  Length(L) mm 1162 1162 1162 1360 1360 1440
Width(B) mm 450 500 500 500 500 500
Height(H) mm 700 781 781 781 781 883
Mounting dimensions Length(D) mm 600 600 600 800 800 800
Width(E) mm  380 400 400 400 400 400
The product's cooling capacity is based on a condensing temperature of 40°C. Our standard medium- and high-temperature units are equipped with water-cooled condensers and accessories suitable for cold storage facilities operating below 0°C. For temperatures above 0°C, a larger water-cooled condenser is required.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 40℃.
·Configuration can be added according to customers' requirements.
