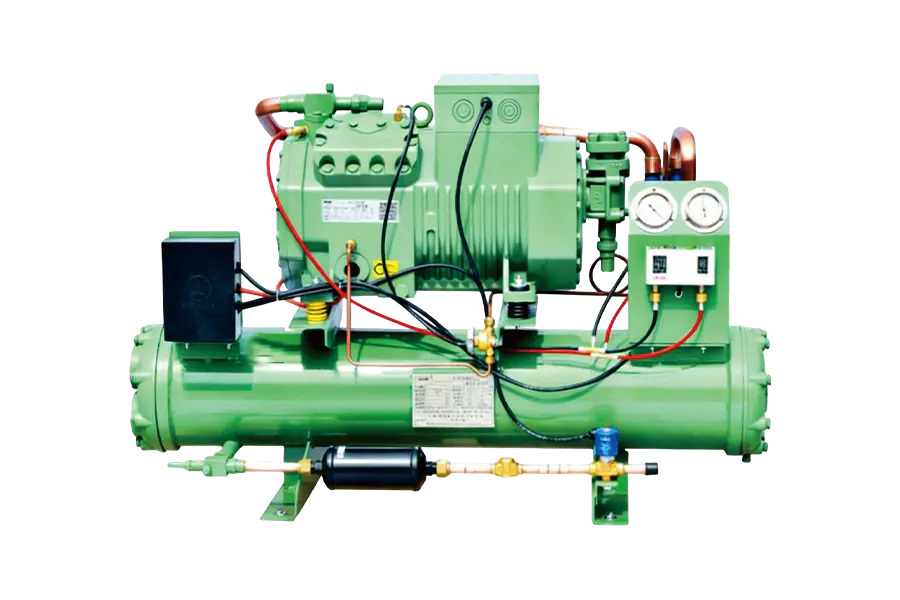

Semi-Hermetic Water-Cooled Chiller

The unit is equipped with a Bitzer semi-hermetic refrigeration compressor, which offers consistent quality and reliable operation.
It features a high-efficiency shell-and-tube condenser, providing excellent heat exchange efficiency and a long service life.
The compressor operates quietly and efficiently, and the unit has an attractive design.

Share to:

Product Features

Model of units GXN2BBZG GXN3BBZG GXN4BBZG GXN5BBZG GXN7BBZG GXN10BBZG
Applicable Temperature(℃) 7.5 ~ -25℃
Refrigerant R404A/R507A
Power supply 380V/3/50HZ
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 1 2 3 4 6 7
Specification of water-cooled 1 1 1-1/4 1-1/4 1-1/4 1-1/2
Capacity Evaporating Temperature 7.5℃ Cooling capacity(W) 5958 8406 15831 17514 25650 34200
Powar(W) 1720 2500 4310 4530 6680 8690
Evaporating Temperature 0℃ Cooling capacity(W) 4554 6444 12195 13347 19530 25830
Powar(W) 1640 2370 4060 4340 6370 8120
Evaporating Temperature -10℃ Cooling capacity(W) 2916 4374 8217 9036 13266 17181
Power(W) 1470 2100 3590 3890 5680 7010
Evaporating Temperature -20℃ Cooling capanity(W) 1530 2196 4347 4626 6795 8370
Power(W) 1100 1580 2680 2960 4260 4940
Interface Liquid outlet pipe interface 3/8" 3/8" 3/8" 1/2" 1/2" 5/8"
Suction pipe interface 5/8" 5/8" 1-1/8" 1-1/8" 1-1/8" 1/3/8"
Overall dimensions  Length(L) mm 946 946 972 972 972 1162
Width(B) mm 300 300 400 400 450 450
Height(H) mm 498 498 604 604 690 690
Mounting dimensions Length(D) mm 500 500 500 500 500 600
Width(E) mm  250 250 300 300 380 380
The product's cooling capacity is based on a condensing temperature of 40°C. Our standard medium- and high-temperature units are equipped with water-cooled condensers and accessories suitable for cold storage facilities operating below 0°C. For temperatures above 0°C, a larger water-cooled condenser is required.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 40℃.
·Configuration can be added according to customers' requirements.

Model of units GXN15BBZG GXN20BBZG GXW25BBZG GXW30BBZG GXW40BBZG GXW50BBZG
Applicable Temperature(℃) 7.5~-25℃
Refrigerant R404A/R507A
Power supply 380V/3/50HZ
Condenser Form Scroll and tube Condenser
Rated Water Flow(m³/h) 10 12 16 18 26 32
Specification of water-cooled 2 2 2 2 2-1/2 2-1/2
Capacity Evaporating Temperature 7.5℃ Cooling capacity(W) 47520 56160 72270 82800 119790 145620
Powar(W) 12180 14310 19000 22100 32400 40300
Evaporating Temperature 0℃ Cooling capacity(W) 35820 42480 55350 63540 92160 112140
Powar(W) 11360 13420 17740 20600 30400 37800
Evaporating Temperature -10℃ Cooling capacity(W) 23670 28440 37710 43380 63180 77130
Power(W) 9760 11640 15470 17890 26700 33200
Evaporating Temperature -20℃ Cooling capanity(W) 11412 14094 19260 22320 32760 40140
Power(W) 6760 8290 11320 13090 19860 24400
Interface Liquid outlet pipe interface 3/4" 3/4" 7/8" 7/8" 1-1/8" 1-1/8"
Suction pipe interface 1-5/8" 2-1/8" 2-1/8" 2-1/8" 2-1/18" 2-1/8"
Overall dimensions  Length(L) mm 1162 1162 1360 1360 1440 1646
Width(B) mm 450 450 500 500 500 500
Height(H) mm 700 700 781 781 883 883
Mounting dimensions Length(D) mm 600 600 800 800 800 1000
Width(E) mm  380 380 400 400 400 400
The product's cooling capacity is based on a condensing temperature of 40°C. Our standard medium- and high-temperature units are equipped with water-cooled condensers and accessories suitable for cold storage facilities operating below 0°C. For temperatures above 0°C, a larger water-cooled condenser is required.
Note:
·Cooling capacity in the form is calculated when the ambient temperature is 40℃.
·Configuration can be added according to customers' requirements.
